ZZ paper banding machines

LPAZ10X

ZZ paper banding machines: LPAZ10XCabinex
ZZ paper banding machines: LPAZ10X

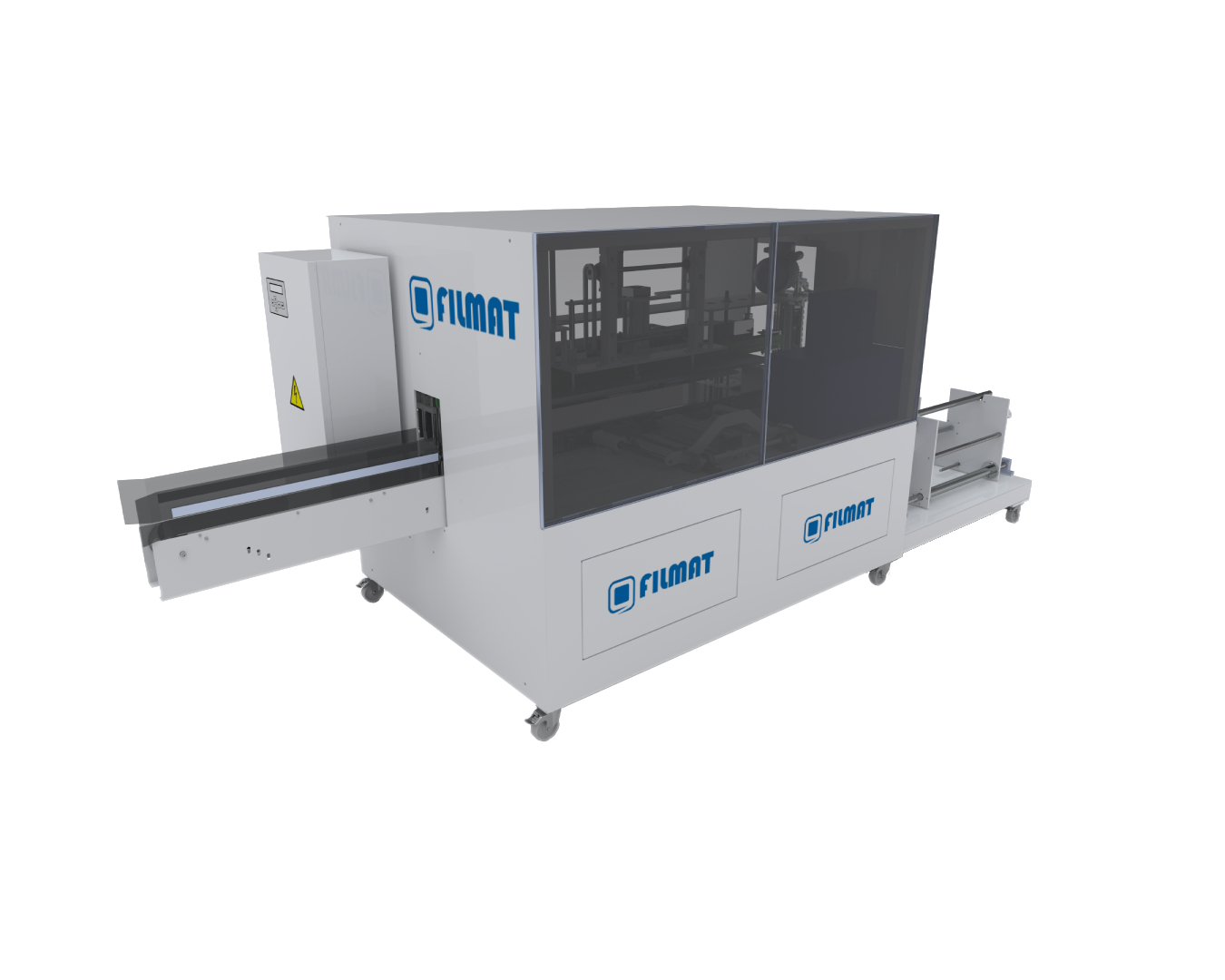

The LPAZ10X line is an automatic system designed for wrapping ZZ towels with paper bands. Products supplied in a single row are precisely wrapped, forming a securely bound log up to 1500 mm in length (plus a technological waste margin). The packaging process is fully automatic and repeatable, ensuring consistent quality and precise material handling. The prepared log is then transmit directly to the cutting saw, serving as an integral part of the production line.

Technical specification

dimensions of ZZ-folded stack
configured individually
paper dimensions
1550 mm
package infeed side
left or right
efficiency
up to 11 packs/min.
power supply
3x 400/230V, 50/60Hz with protection
current consumption
25,0 A
power installed/average consumption
8.0 kW / 8,0 kW
compressed air
0,7 Mpa
air consumption
3 m3/h
noise level (A)
75 dB
material
DC01 steel
color
structural, light grey RAL7035
custom-made
acid-resistant steel
weight
1560 kg
