Shrink heating tunnels

TP30

Shrink heating tunnels: TP30Cabinex
Shrink heating tunnels: TP30Shrink heating tunnels: TP30

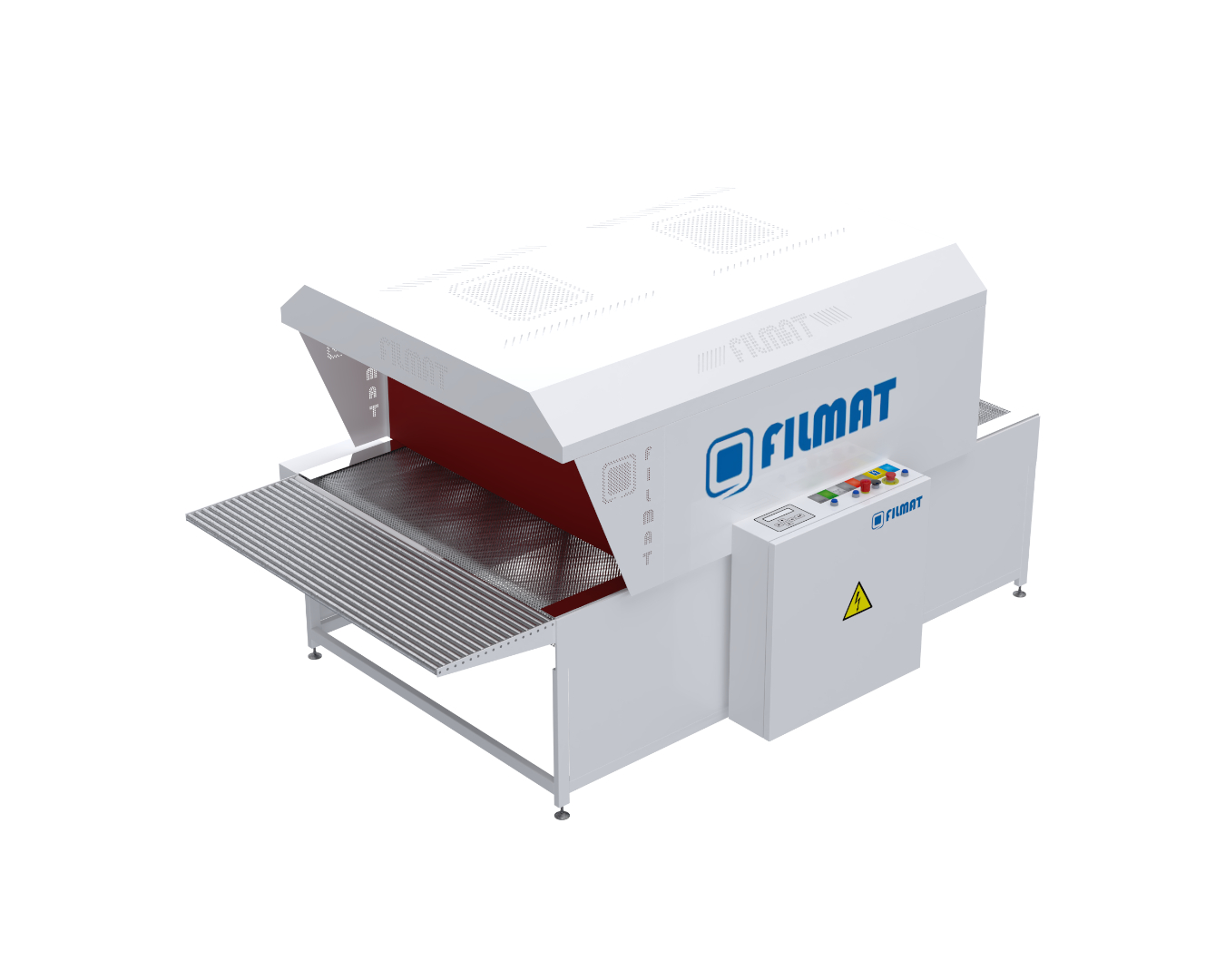

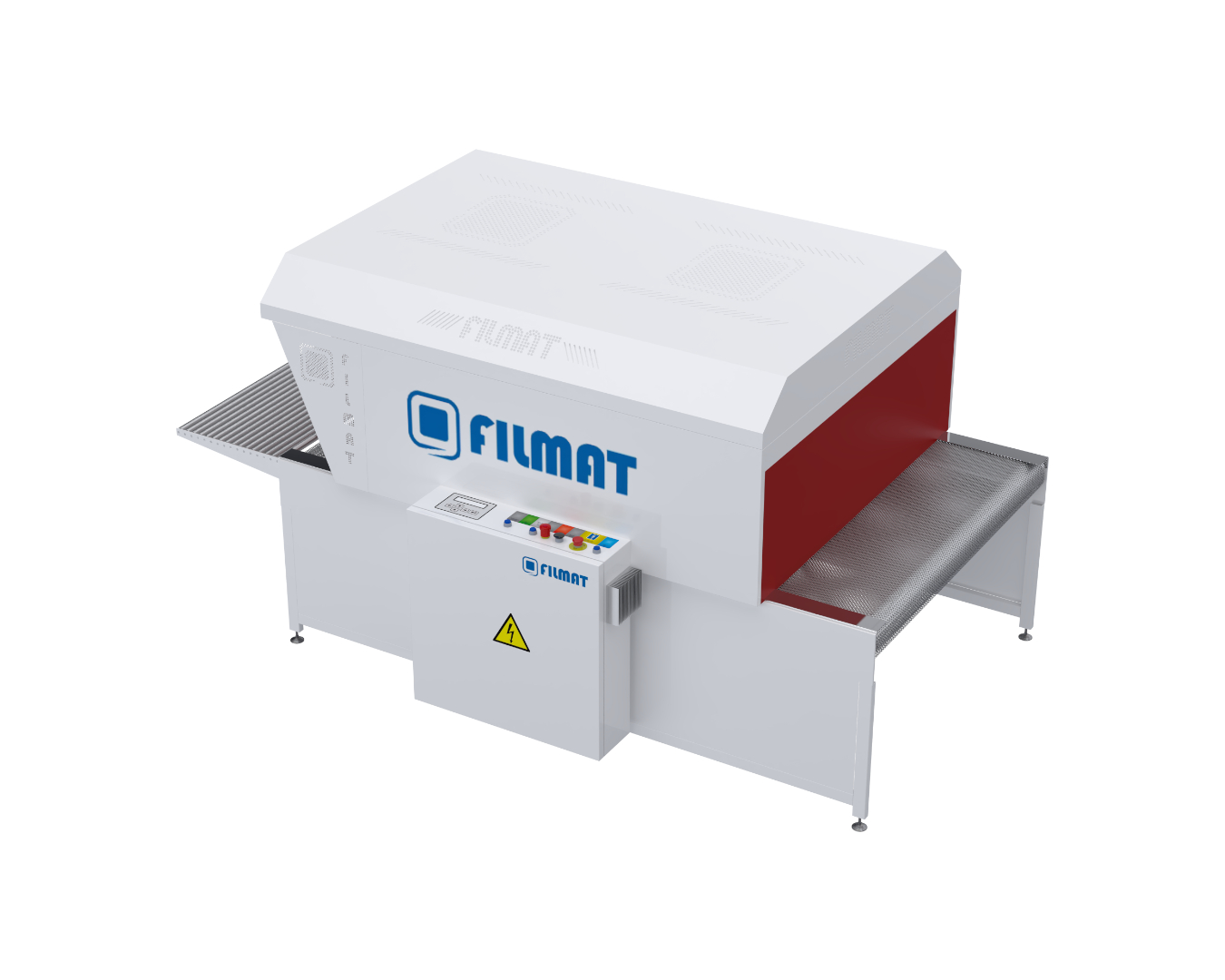

The TP30 heat shrink tunnel is a custom-engineered solution designed for shrinking film around large-size products such as kitchen countertops, flooring panels, radiators, and other industrial components. The machine ensures a uniform and repeatable shrink process, providing stable and aesthetically finished packaging.
With a focus on environmental impact and operating cost optimization, TP30 tunnels are designed with high-performance thermal insulation and an energy-efficient heating system to minimize heat loss. Each unit is individually configured to match the product dimensions and the Customer’s specific production conditions.

Technical specification

chamber dimensions
configured individually
max.package size
configured individually
conveyor belt speed (AmE/min.)
constant: 4,0, continuously adjustable: 2,0 - 9,0
power supply
3x 400/230V, 50/60Hz with protection
current consumption
46,0 A
power installed/average consumption
32,0 kW / 15,0 kW
shrinking temperature
recommended 180-200°C / allowable 250°C
noise level (A)
75 dB
material
DC01 steel
color
structural, light grey RAL7035
custom-made
acid-resistant steel
weight
400 kg
