Shrink heating tunnels

TP20

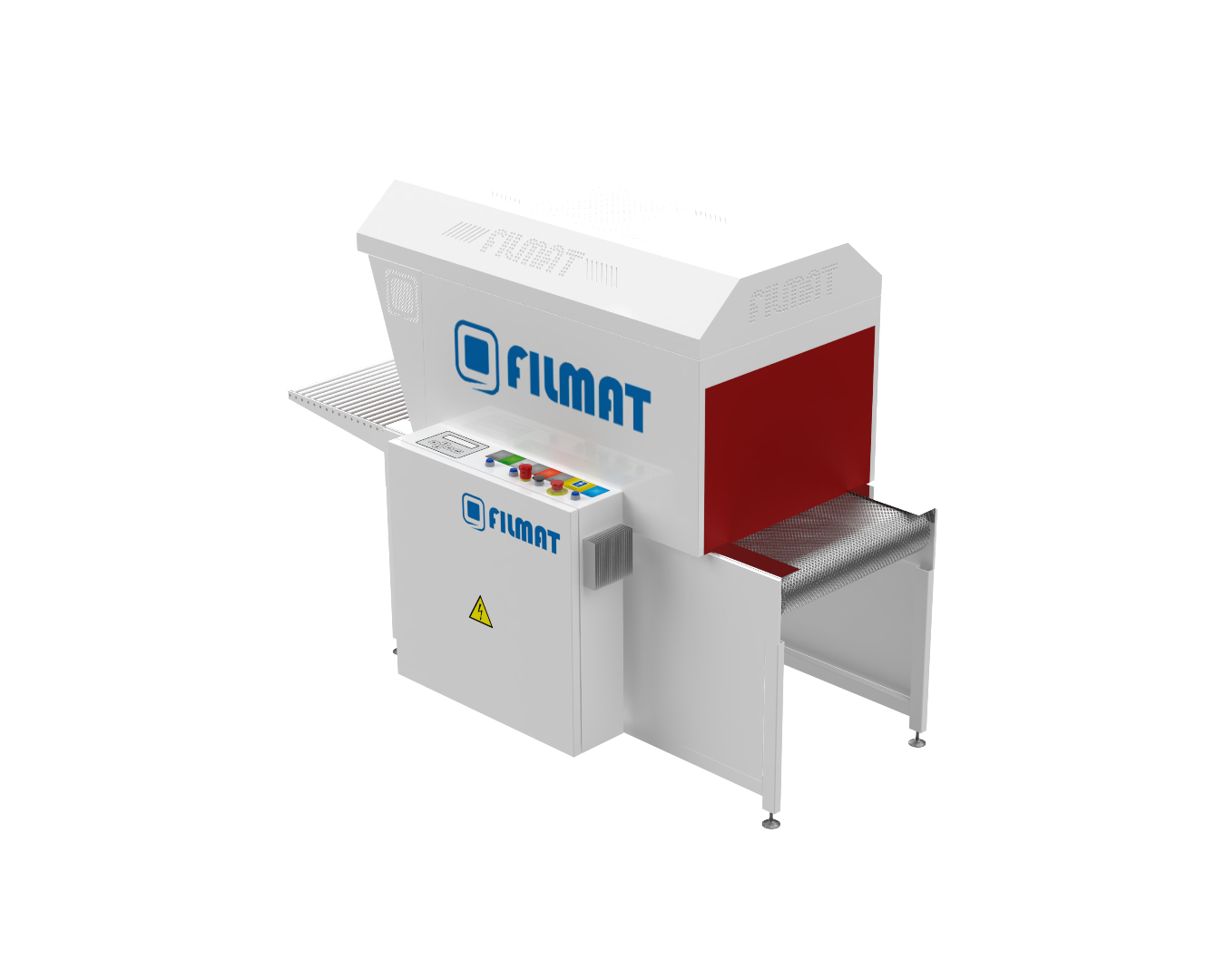

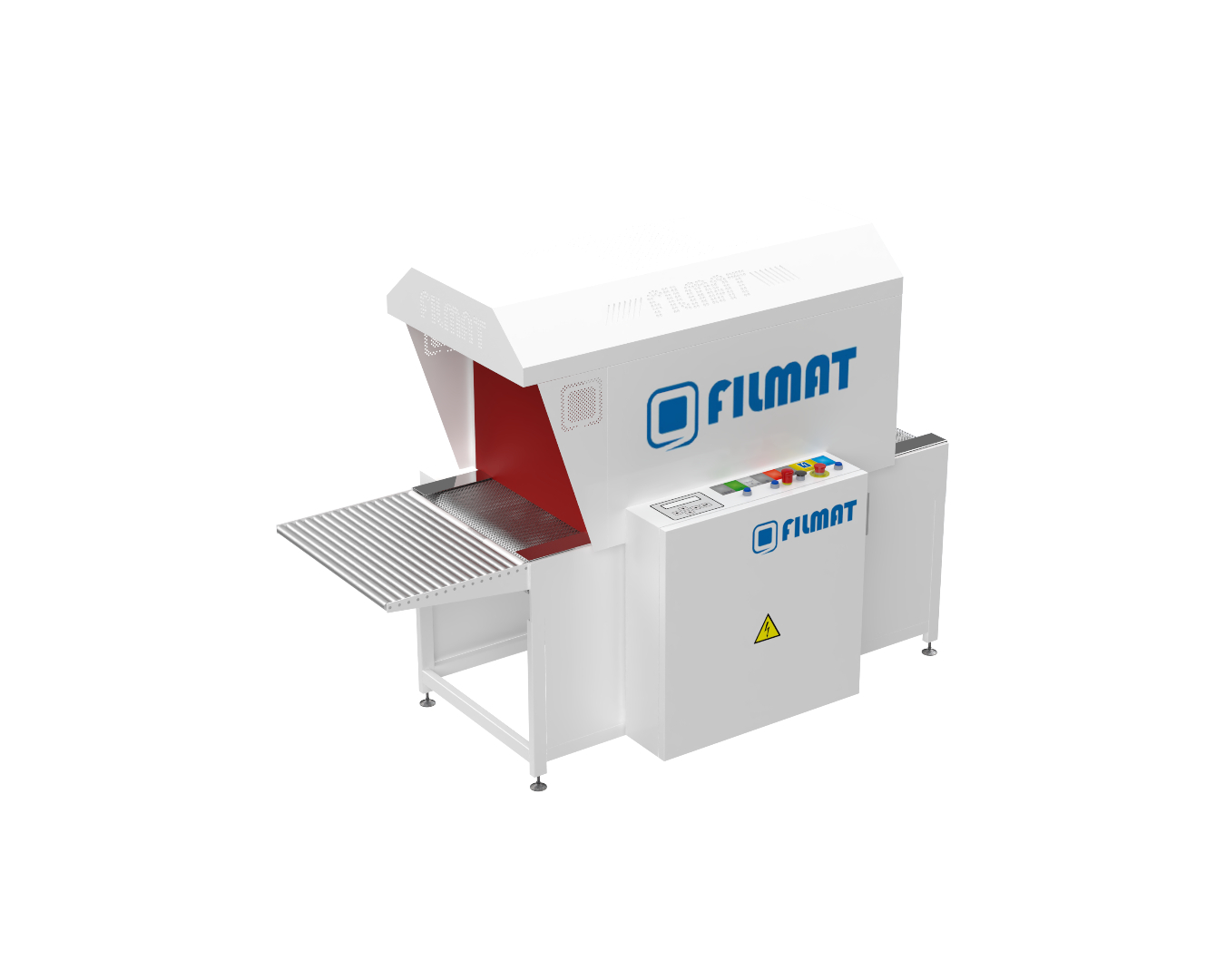

Shrink heating tunnels: TP20Cabinex
Shrink heating tunnels: TP20Shrink heating tunnels: TP20

The TP20 heat shrink tunnel is a compact unit designed for shrinking film around smaller products such as bottles, jars, cartons, cans, and other individual or multipack items. The machine ensures a uniform and repeatable shrink process, delivering an aesthetic appearance and stable package integrity.
Similar to the TP30 model, the tunnel is engineered with a strong focus on high thermal insulation and energy efficiency, reducing heat losses and operating costs. The TP20 can operate as part of an automatic or semi-automatic production line, seamlessly integrating with FILMAT sealing machines and packaging lines.

Technical specification

chamber dimensions
600mm x 380mm x 1000mm (WxHxD)
max.package size
480mm x 320mm (WxH)
conveyor belt speed (AmE/min.)
constant: 4,0,continuously adjustable: 4,1 - 9,2
power supply
3x 400/230V, 50/60Hz with protection
current consumption
10,0 A
power installed/average consumption
11,0 kW / 5,0 kW
shrinking temperature
recommended 140-180°C / allowable 250°C
noise level (A)
71 dB
material
DC01 steel
color
structural, light grey RAL7035
custom-made
acid-resistant steel
weight
210 kg
