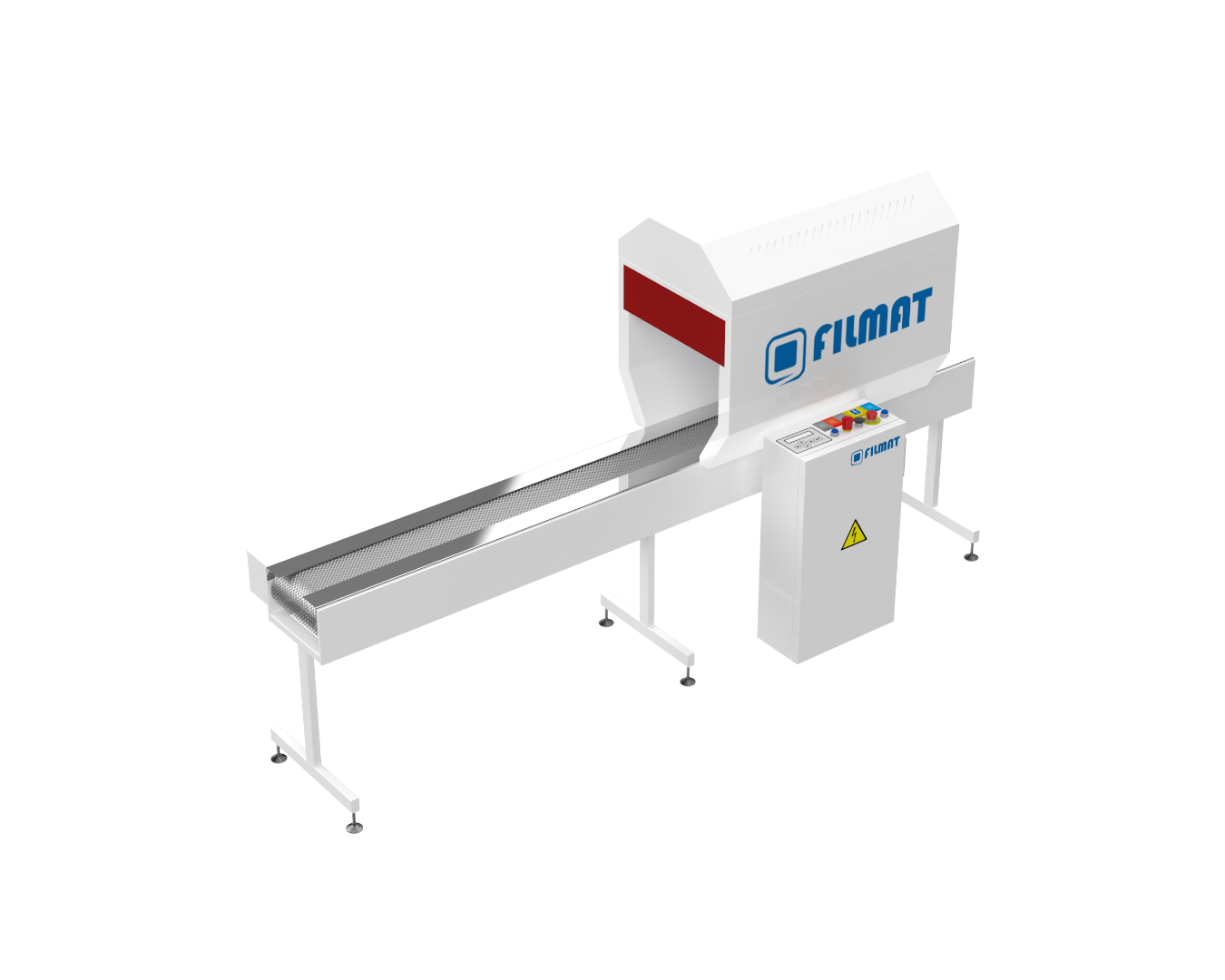

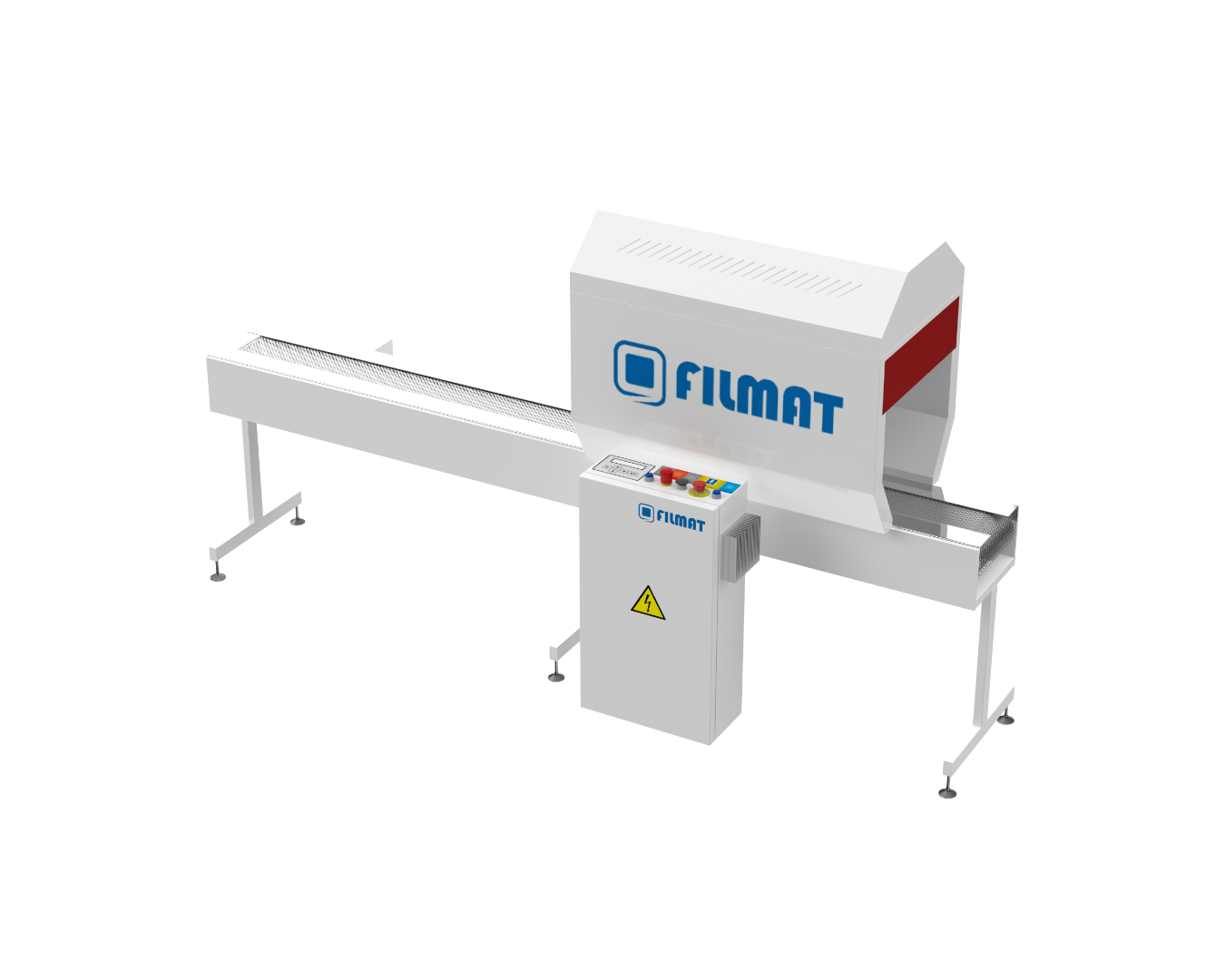

Shrink heating tunnels
TP10
TP 10 series heat shrink tunnels are designed for the shrinking of SLEEVE-type labels. Inside the tunnel, the package is heated uniformly from all sides by a forced circulation of hot air generated by heating elements, ensuring precise and consistent label shrinkage even on irregularly shaped containers. The tunnel is engineered for continuous operation in industrial-scale production environments.
Technical specification
- chamber dimensions
- configured individually
- max.package size
- configured individually
- efficiency standard/optional
- up to 12 / 20 packs/min.
- conveyor belt speed (AmE/min.)
- constant: 4,0, continuously adjustable: 4,1 - 9,2
- power supply
- 3x 400/230V, 50/60Hz with protection
- current consumption
- 10,0 A
- power installed/average consumption
- 11,0 kW / 5,0 kW
- shrinking temperature
- recommended 140-180°C / allowable 250°C
- noise level (A)
- 71 dB
- material
- DC01 steel
- color
- structural, light grey RAL7035
- custom-made
- acid-resistant steel
- weight
- 210 kg
