Semi-automatic packaging lines

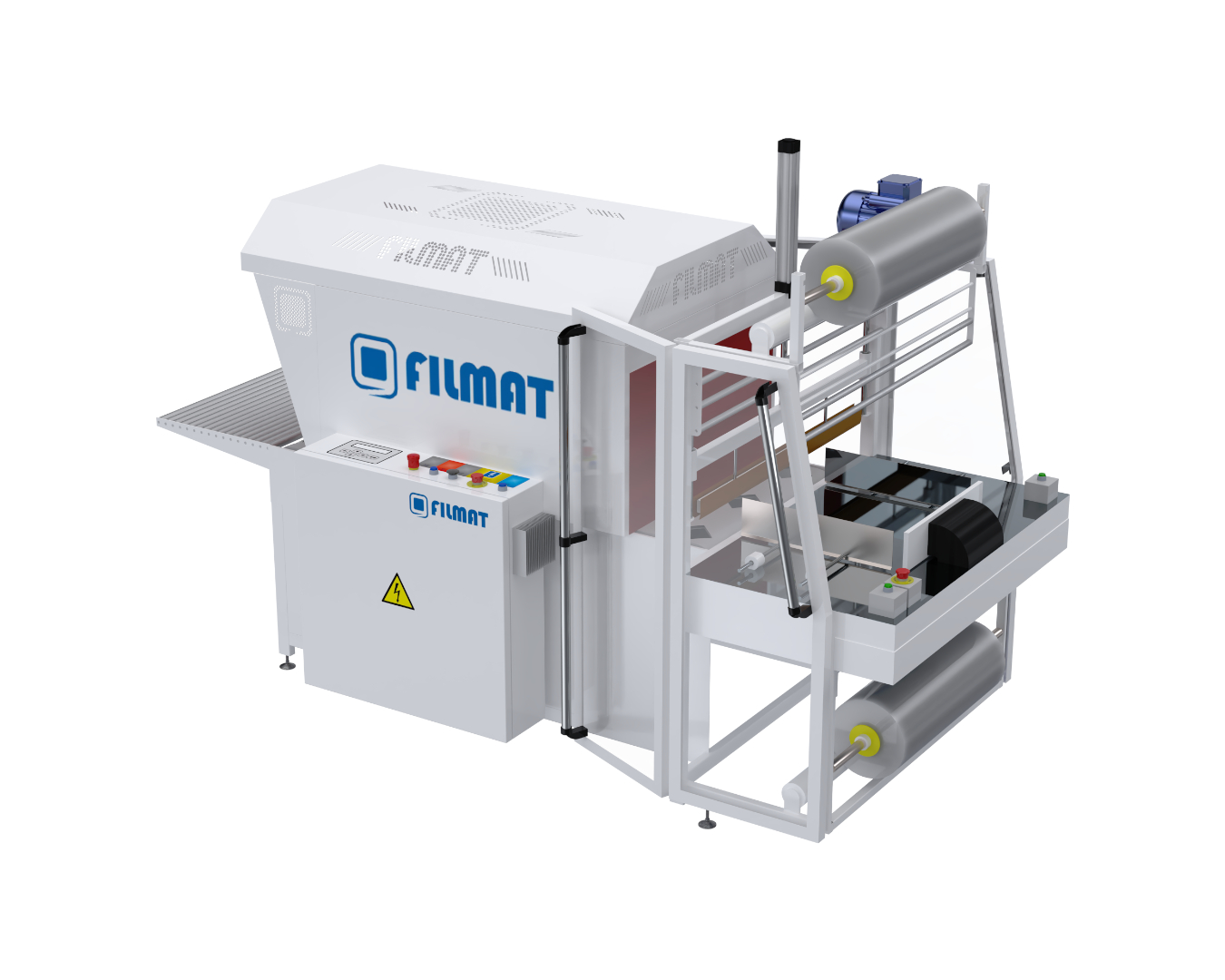

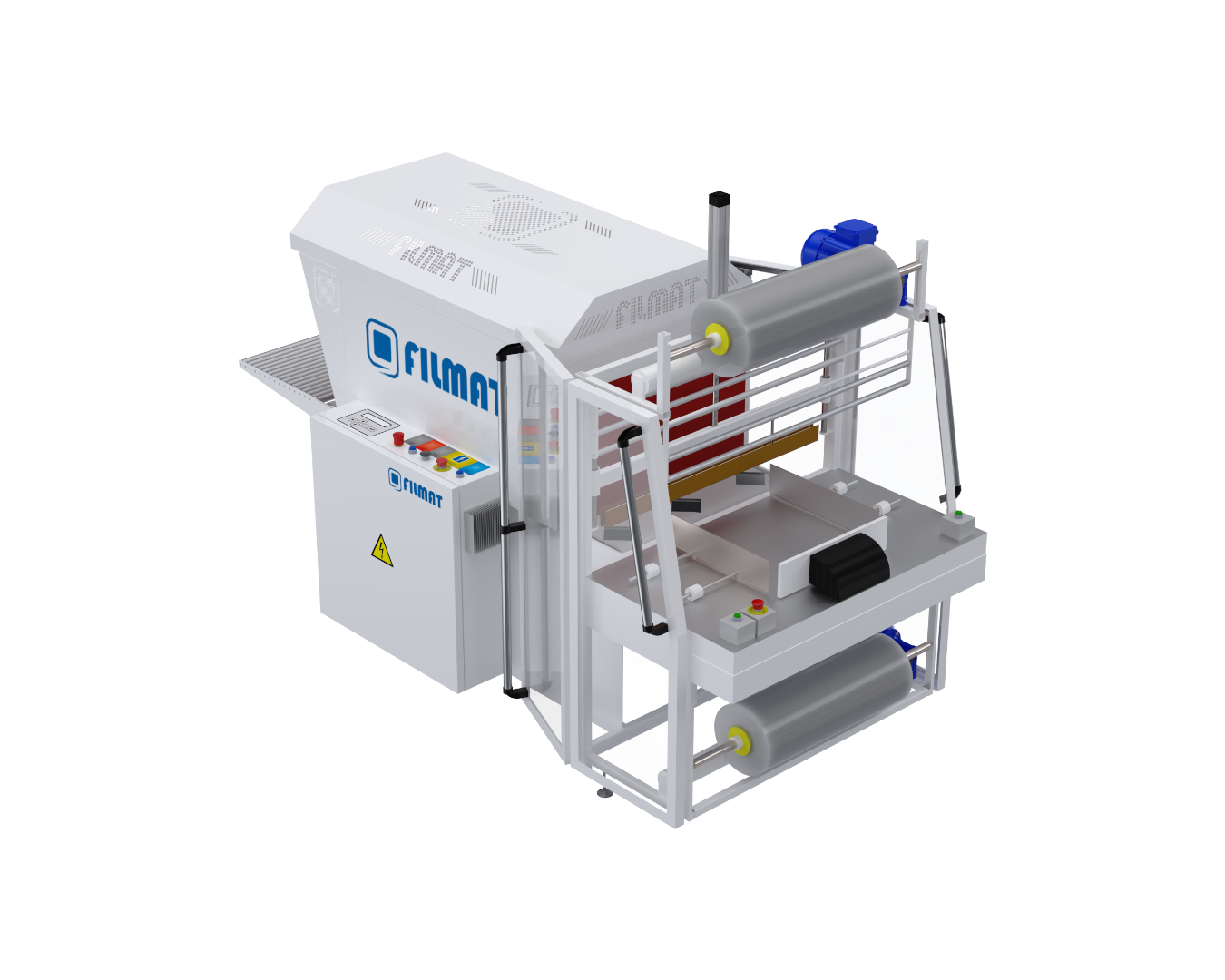

LPA10X
The LPA10X semi-automatic packaging line is a simple yet highly efficient solution for packaging a wide range of products in shrink film – including biodegradable, recycled, and standard PE films. The machine is suitable for “almost any product” product, delivering consistent and visually appealing packaging. Tool-free operation and intuitive parameter adjustment make format changeovers fast and user-friendly. LPA10X provides a flexible solution for companies looking for reliable semi-automatic packaging line.
Technical specification
- chamber dimensions
- configured individually
- max.package size
- configured individually
- film dimensions
- 300 mm, inner diameter 76 mm
- constant-heat shrinking unit
- YES (2+1 in the middle)
- efficiency standard/optional
- up to 12 packs/min. / 25 packs/min.
- conveyor belt speed (AmE/min.)
- constant: 4,0, continuously adjustable: 4,1 - 9,2
- power supply
- 3x 400/230V, 50/60Hz with protection
- current consumption
- dependent on the model
- power installed/average consumption
- dependent on the model
- shrinking temperature
- recommended 140-180°C / allowable 250°C
- compressed air
- 0,7 Mpa
- air consumption
- 3 m3/h
- material
- DC01 steel
- color
- structural, light grey RAL7035
- custom-made
- acid-resistant steel
- weight
- dependent on the model
