Pallet wrappers

OP10X

Pallet wrappers: OP10XCabinex
Pallet wrappers: OP10X

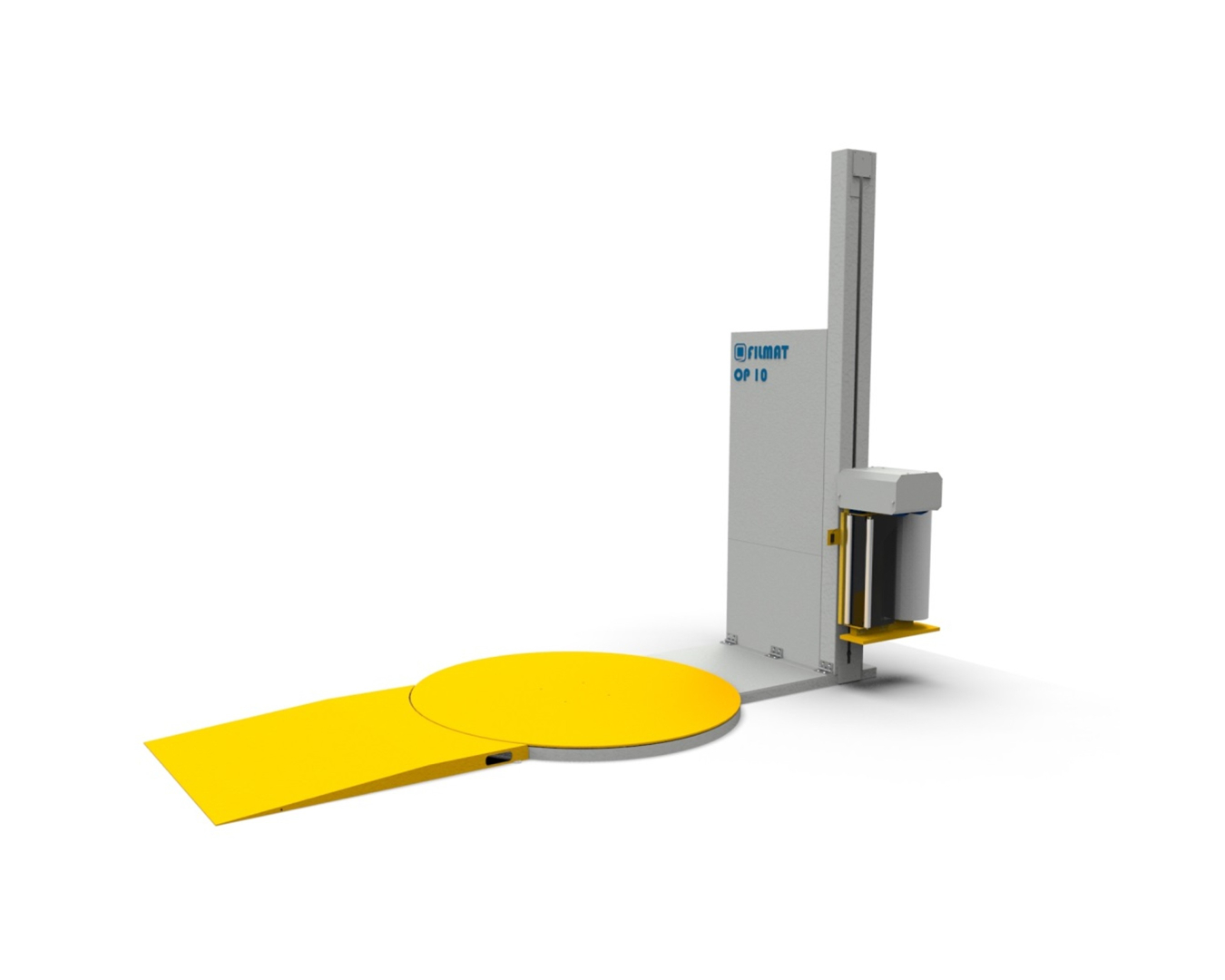

The OP10X pallet wrapper is one of the most popular models in the FILMAT portfolio, equipped with an access ramp that allows easy loading using a manual pallet truck. The low-profile turntable design facilitates daily operation and accelerates pallet loading and unloading processes.

The machine is designed and manufactured according to individual customer requirements – the wrapping height and turntable diameter can be customized to suit the dimensions of the pallet or specific product. OP10X pallet wrappers are widely used across various industrial sectors, from small manufacturing companies to large production plants and logistics centers.

Thanks to the adjustable pre-stretch system, the unit ensures low stretch film consumption, stable load securing, and a fast return on investment.

Technical specification

pallet weight standard/optional
1500 kg / 2500 kg
efficiency
30 pallet/h
wrapping height standard/optional
2000 mm / 3000 mm
turntable diameter standard/optional
1500 mm / 3000 mm
pallet clamping pressure
NO
pallet dimensions standard/optional
1200x800 mm / other
film stretch
up to 200%
film consumption (1 pallet, 2 layers)
0,20 kg
mechanical film stretching
YES
loading ramp
YES (optional)
adjustable turntable rotation/film winding density
YES (optional)
film color detection module
YES (optional)
power supply
230V, 50/60Hz with protection
current consumption
1,3 A
power installed/average consumption
0,9 kW / 0,6 kW
automatic film cutting
YES (optional)
noise level (A)
70 dB
material
DC01 steel
color
structural, light grey RAL7035
custom-made
acid-resistant steel
weight
380 kg
