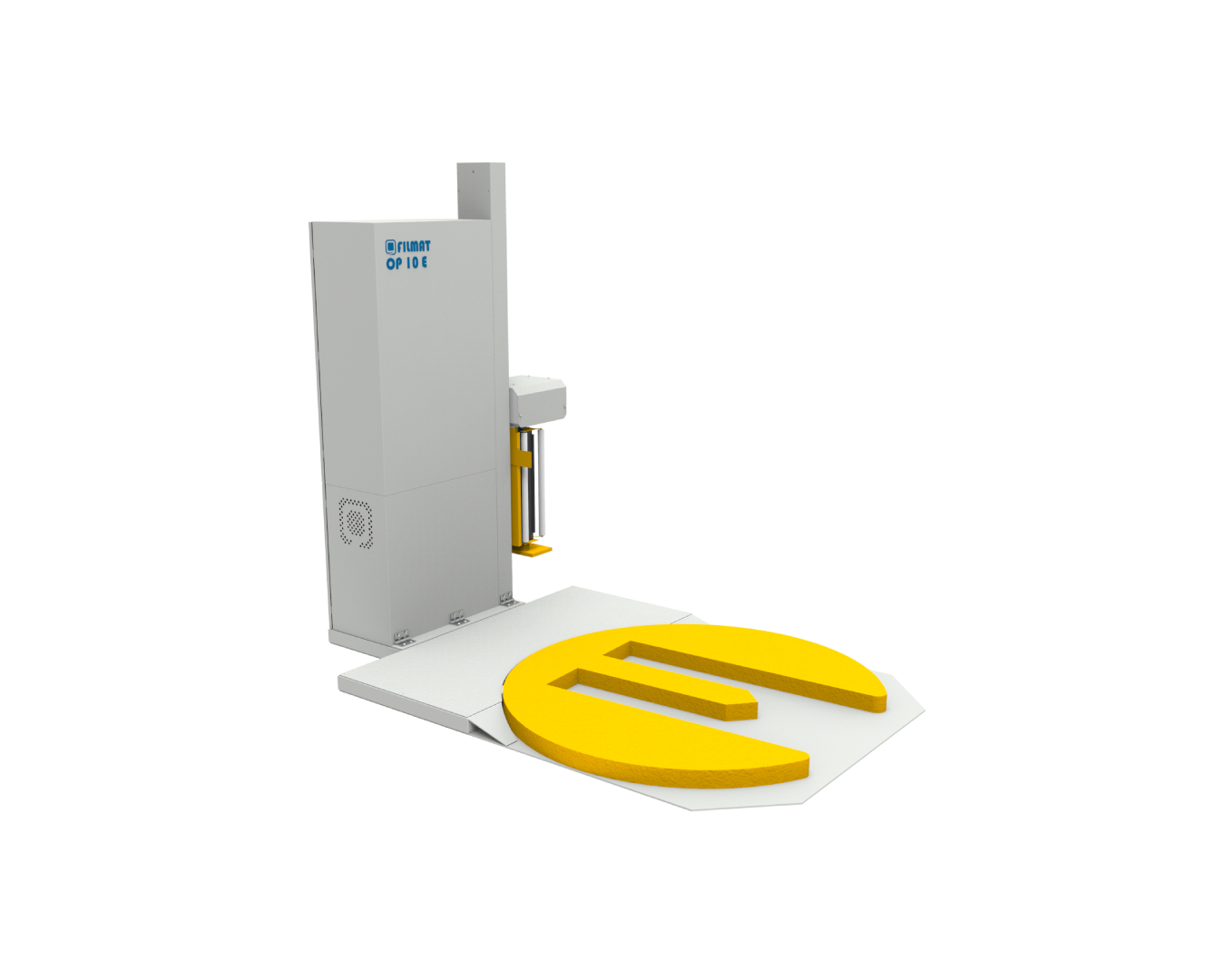

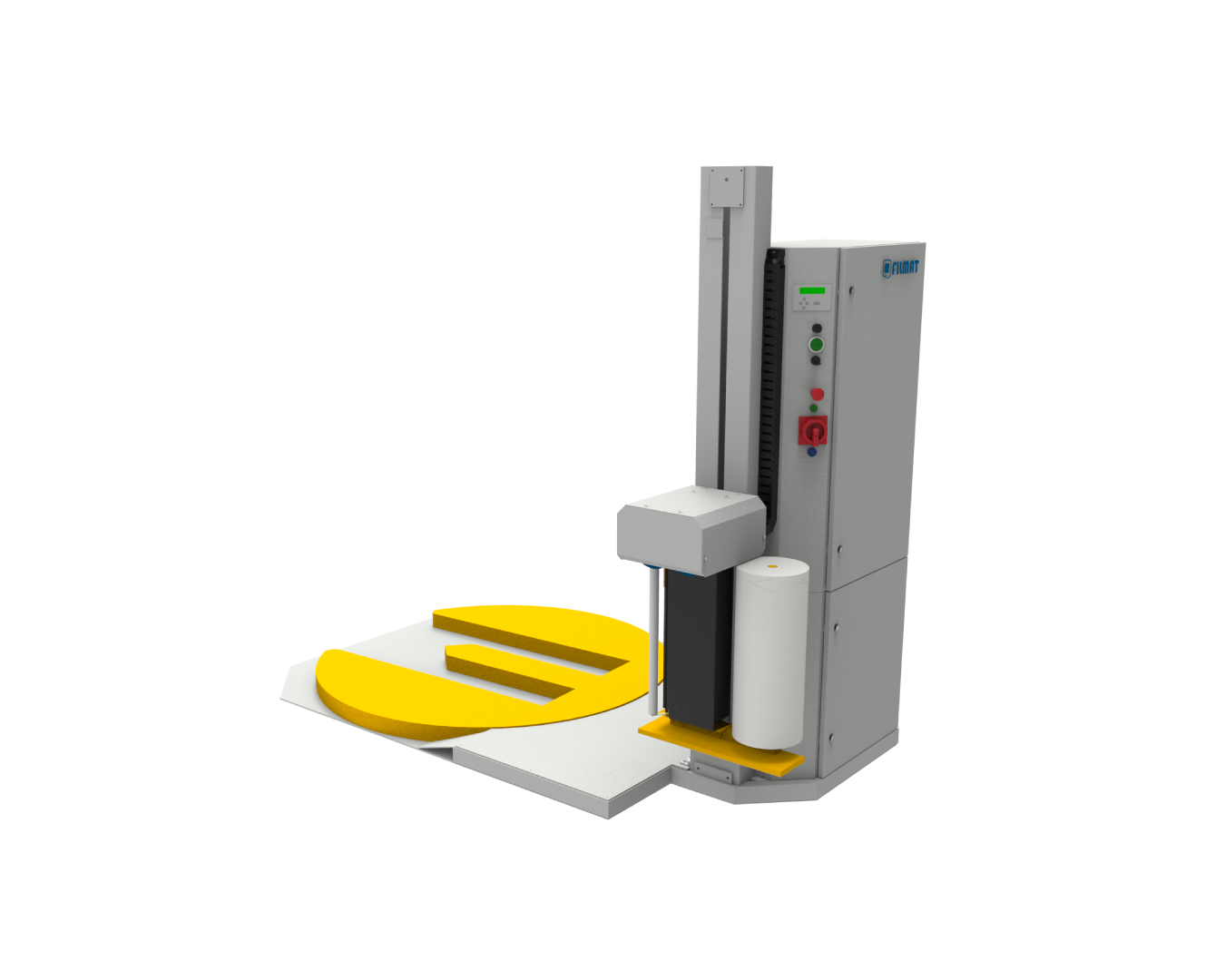

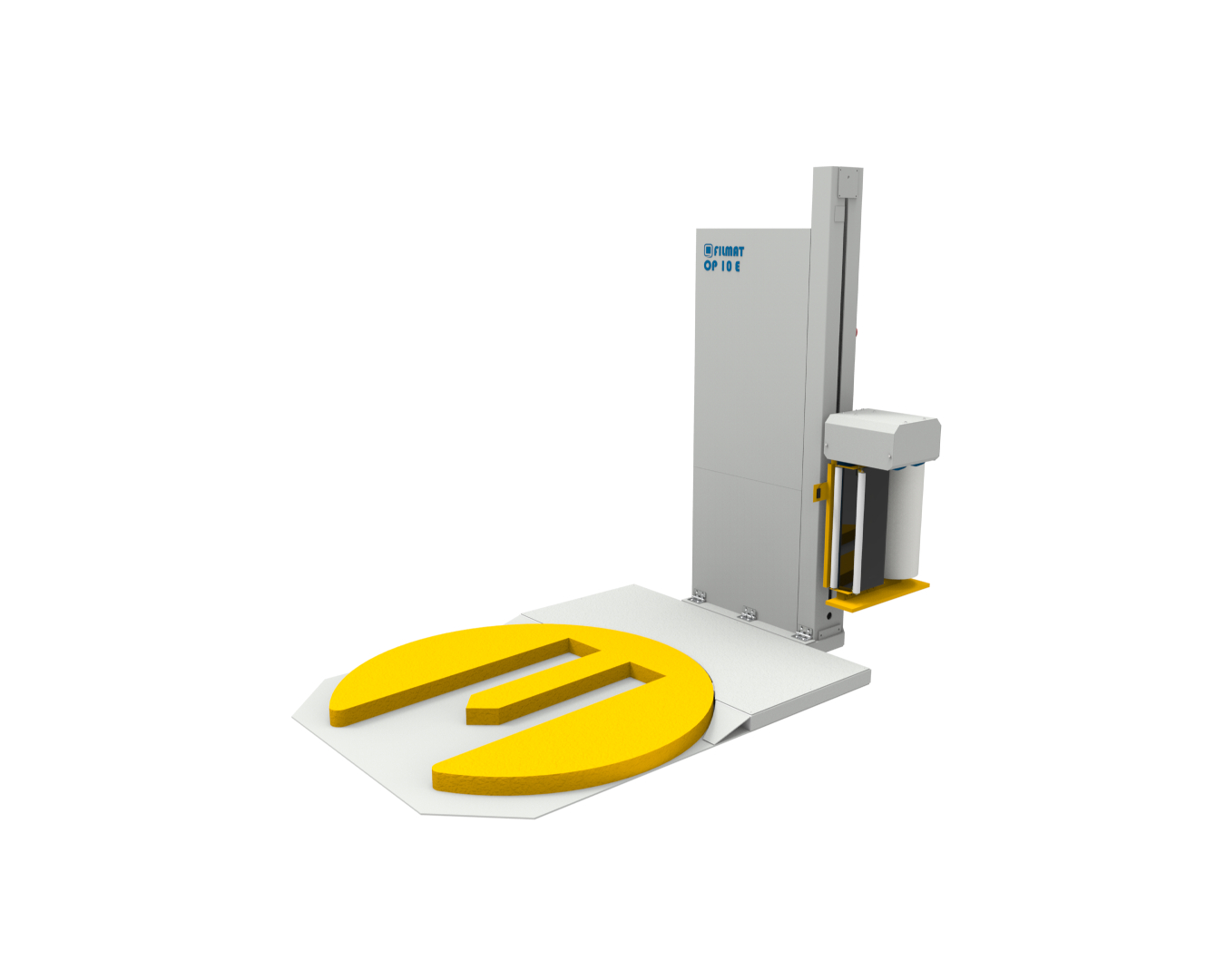

OP10E
The OP10E pallet wrapper is a universal and reliable solution for securing loads with stretch film, featuring a pallet truck access cut-out that enables convenient loading without the need for ramps. The machine is designed and manufactured according to individual customer requirements – the wrapping height and turntable diameter can be tailored to the dimensions of the pallet or specific product.
This type of pallet wrapper is suitable for use in both small production facilities and large logistics centers, ensuring effective load stabilization during storage and transport. Equipped with an adjustable pre-stretch system, the machine minimizes stretch film consumption, resulting in a fast return on investment and reduced operating costs.
Technical specification
- pallet weight standard/optional
- 1500 kg / 2500 kg
- efficiency
- 30 pallet/h
- wrapping height standard/optional
- 2000 mm / 3000 mm
- turntable diameter standard/optional
- 1500 mm / 3000 mm
- pallet clamping pressure
- YES (optional)
- pallet dimensions standard/optional
- 1200x800 mm / other
- film stretch
- up to 300%
- film consumption (1 pallet, 2 layers)
- 0,16 kg
- mechanical film stretching
- YES
- adjustable turntable rotation/film winding density
- YES (optional)
- film color detection module
- YES (optional)
- power supply
- 230V, 50/60Hz with protection
- current consumption
- 1,3 A
- power installed/average consumption
- 0,9 kW / 0,6 kW
- automatic film cutting
- YES (optional)
- noise level (A)
- 70 dB
- material
- DC01 steel
- color
- structural, light grey RAL7035
- custom-made
- acid-resistant steel
- weight
- 430 kg
