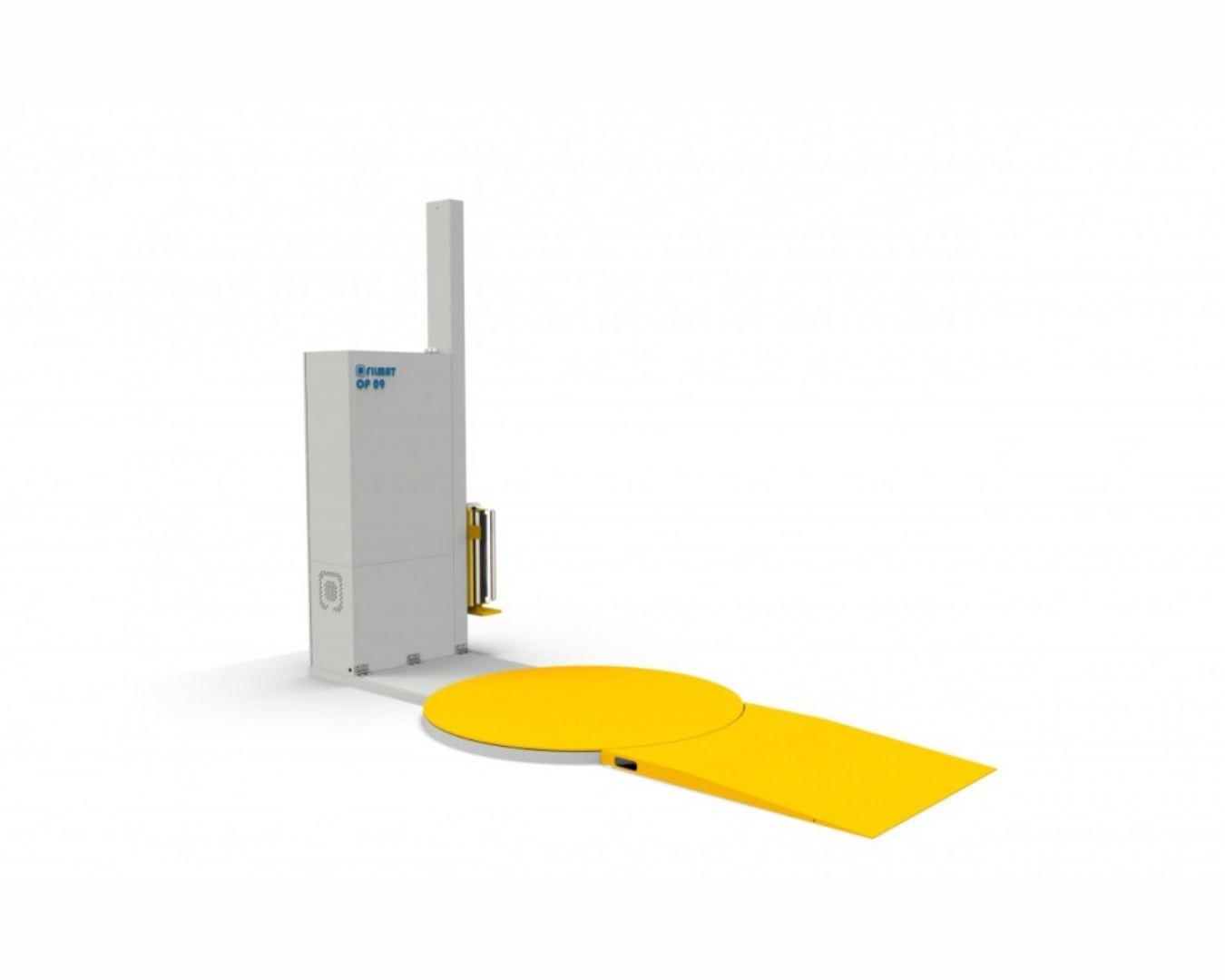

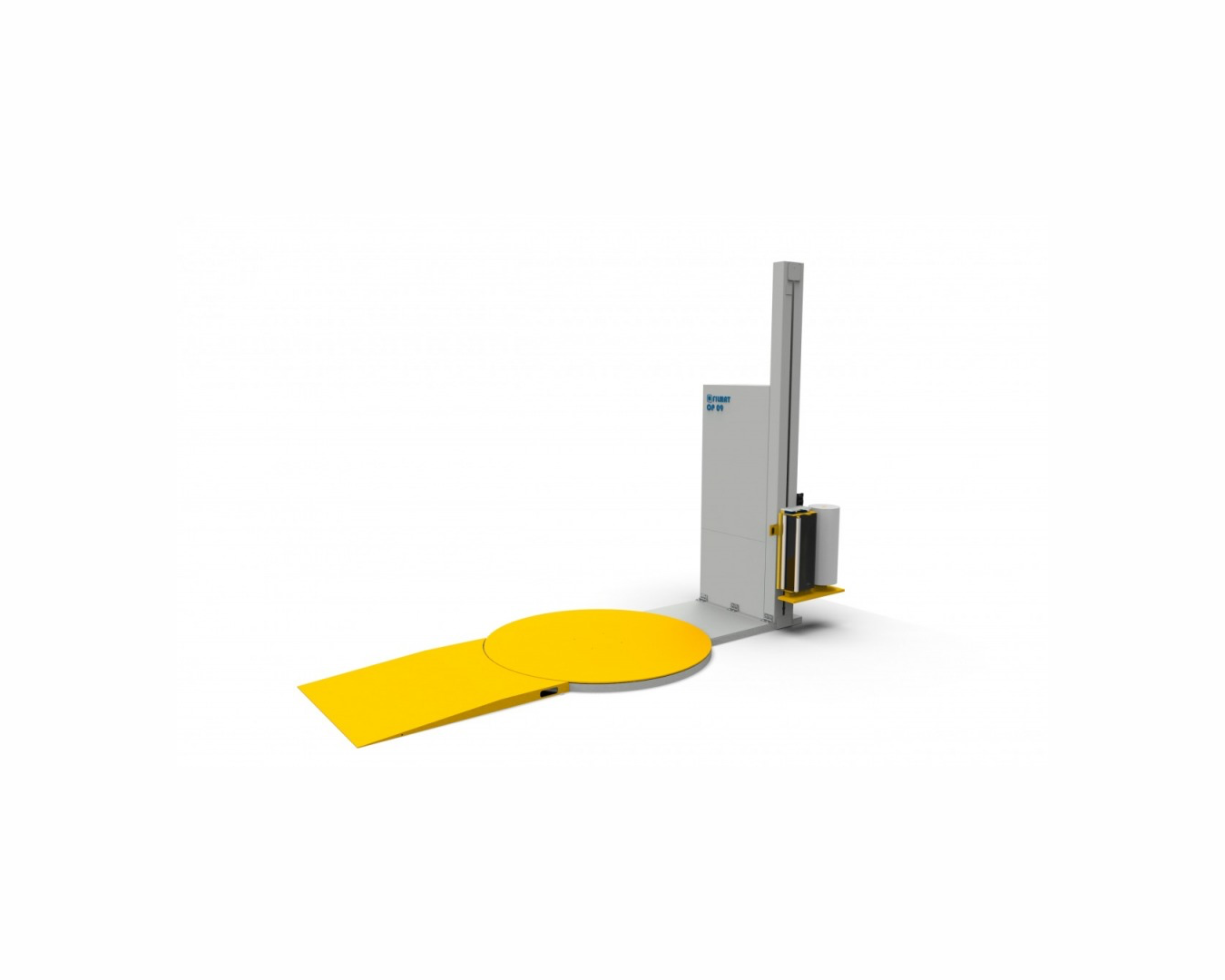

OP09
The OP09 pallet wrapper is a simple and cost-effective machine designed for securing loads with stretch film during storage and transport operations. The unit is equipped with a mechanical film tensioning system, ensuring stable pallet wrapping without the use of a pre-stretch mechanism.
Similarly to the OP10X and OP10E models, the machine can be configured according to customer requirements – the wrapping height and turntable diameter can be adjusted to match the dimensions of the pallet or product. The OP09 pallet wrappers are suitable for a wide range of industrial applications, both in small enterprises and in production facilities with moderate packaging intensity.
It is a robust and straightforward solution for companies looking for a durable and functional machine within an attractive investment budget.
Technical specification
- pallet weight standard/optional
- 1500 kg / 2500 kg
- efficiency
- 20 pallet/h
- wrapping height standard/optional
- 1500 mm / N/D
- turntable diameter standard/optional
- 1500 mm / 3000 mm
- pallet clamping pressure
- NO
- pallet dimensions standard/optional
- 1200x800 mm / other
- film consumption (1 pallet, 2 layers)
- dedicated for pre-stretch film
- loading ramp
- YES (optional)
- power supply
- 3x 400/230V, 50/60Hz with protection
- current consumption
- 1,3 A
- power installed/average consumption
- 0,9 kW / 0,6 kW
- noise level (A)
- 71 dB
- material
- DC01 steel
- color
- structural, light grey RAL7035
- custom-made
- acid-resistant steel
- weight
- 230 kg
