Manual packaging lines

TKZ

Manual packaging lines - PE shrink film: TKZCabinex
Manual packaging lines - PE shrink film: TKZManual packaging lines - PE shrink film: TKZ

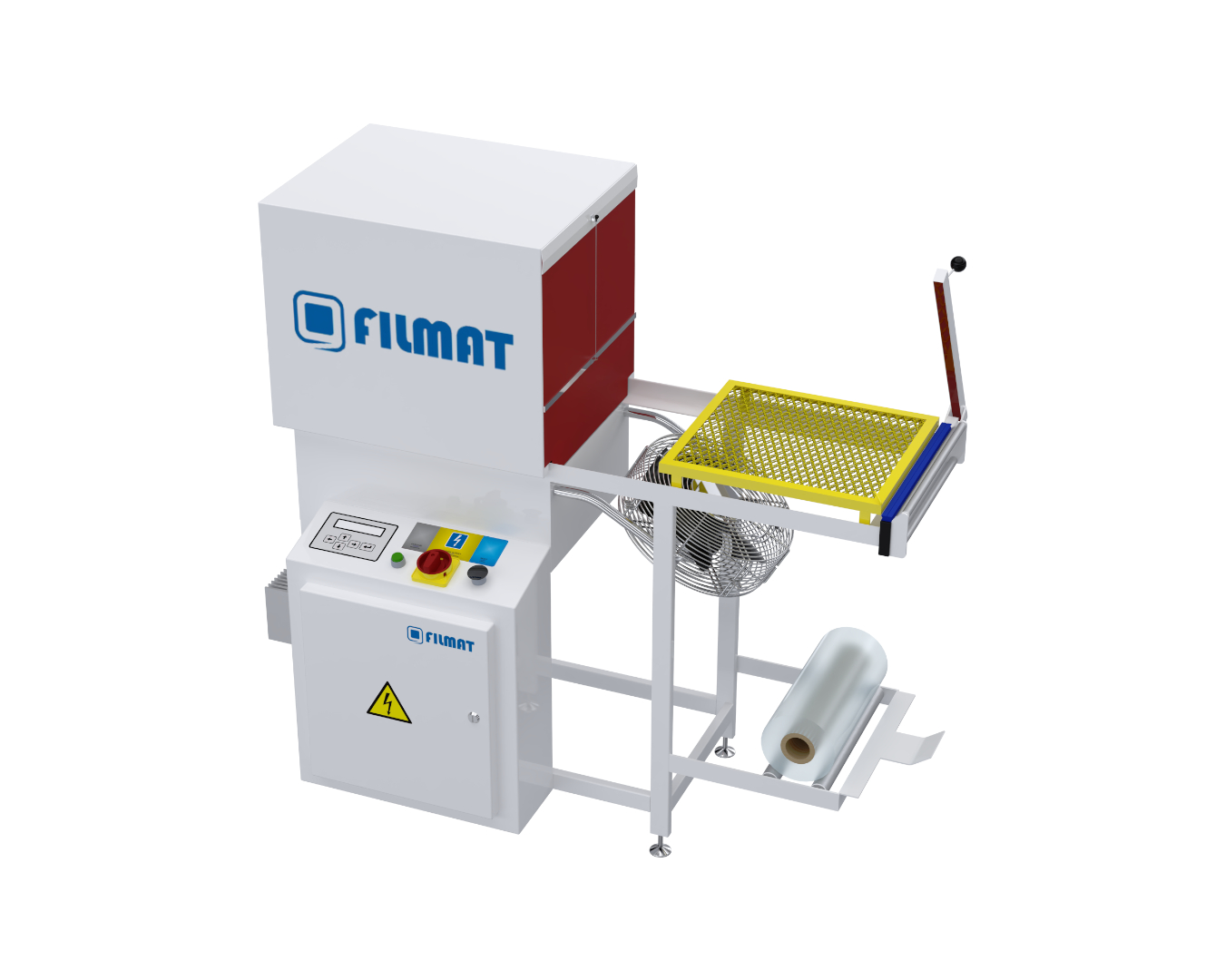

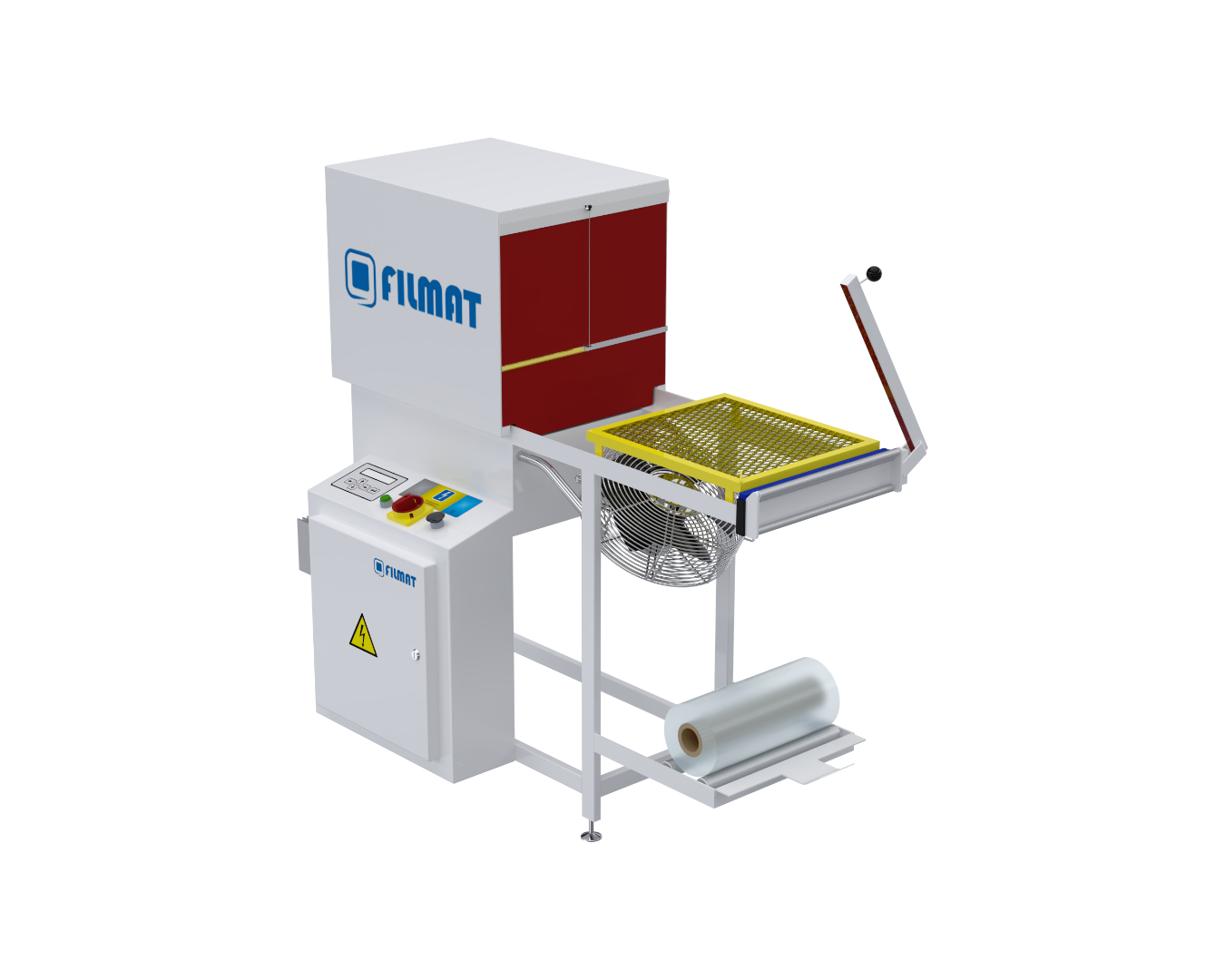

A shrink tunnel with integrated wrap-around machine mounted on a single frame. The operator wraps the package, formed on a cart, with shrink film and manually presses the sealing bar. The cart is then moved into the tunnel chamber. Upon exiting the shrink tunnel, the package is tightly secured and visually appealing. Due to its easy adjustment for different package sizes and types, this system is especially recommended for products and packages produced in short runs and is compatible with all commercially available films, including PE, polyolefin, and others.

Technical specification

chamber dimensions
720mm x 400mm x 600mm (WxHxD)
max.package size
450mm x 320mm x 450mm (WxHxD)
film dimensions
300 mm, inner diameter 76 mm
efficiency
up to 100 packs/h
power supply
3x 400/230V, 50/60Hz with protection
current consumption
12,0 A
power installed/average consumption
6,3 kW / 5,2 kW
shrinking temperature
recommended 140-180°C / allowable 250°C
shrink time control system
YES (automatic)
noise level (A)
71 dB
material
DC01 steel
color
structural, light grey RAL7035
custom-made
acid-resistant steel
weight
150 kg
