Manual packaging lines
LPR10

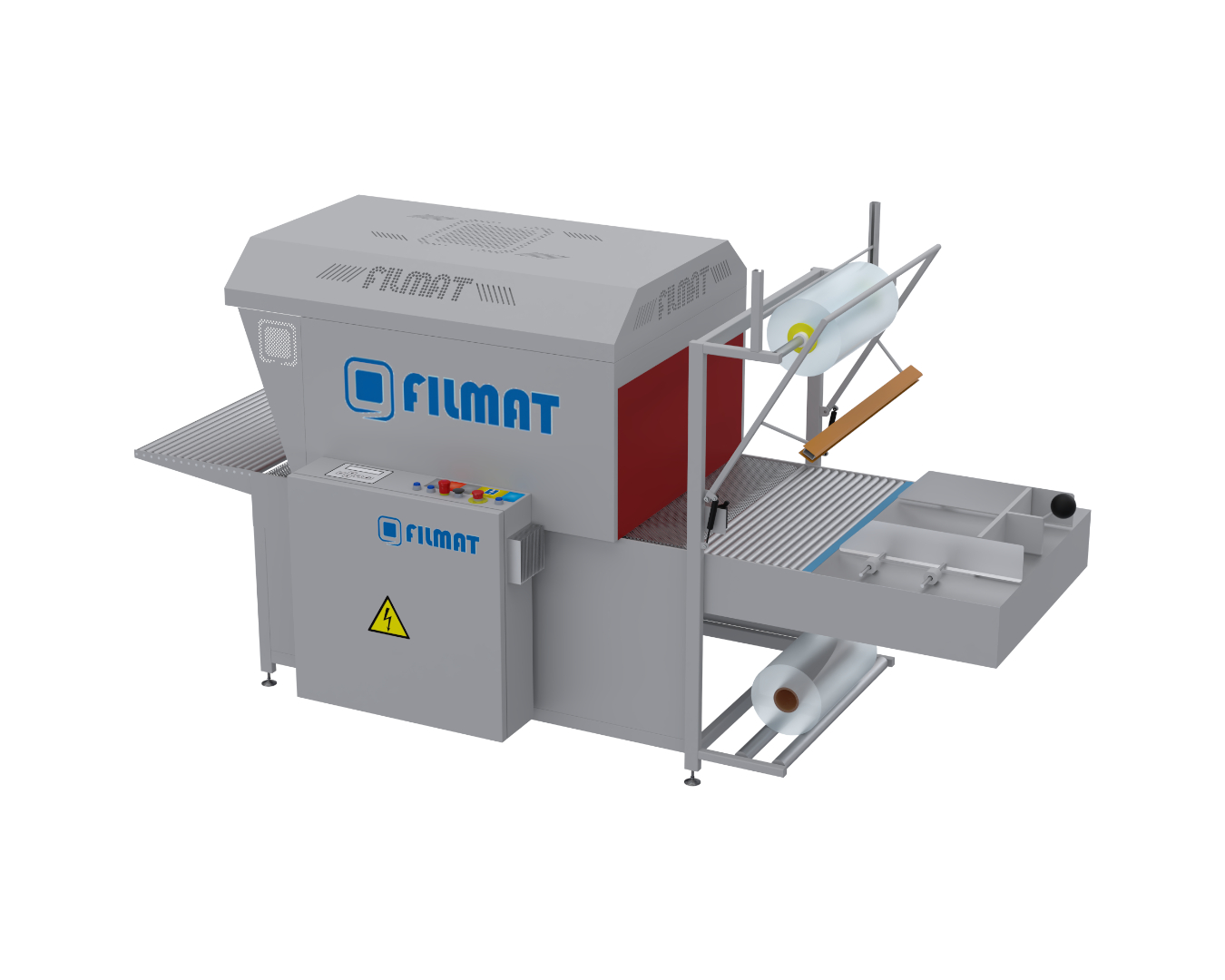

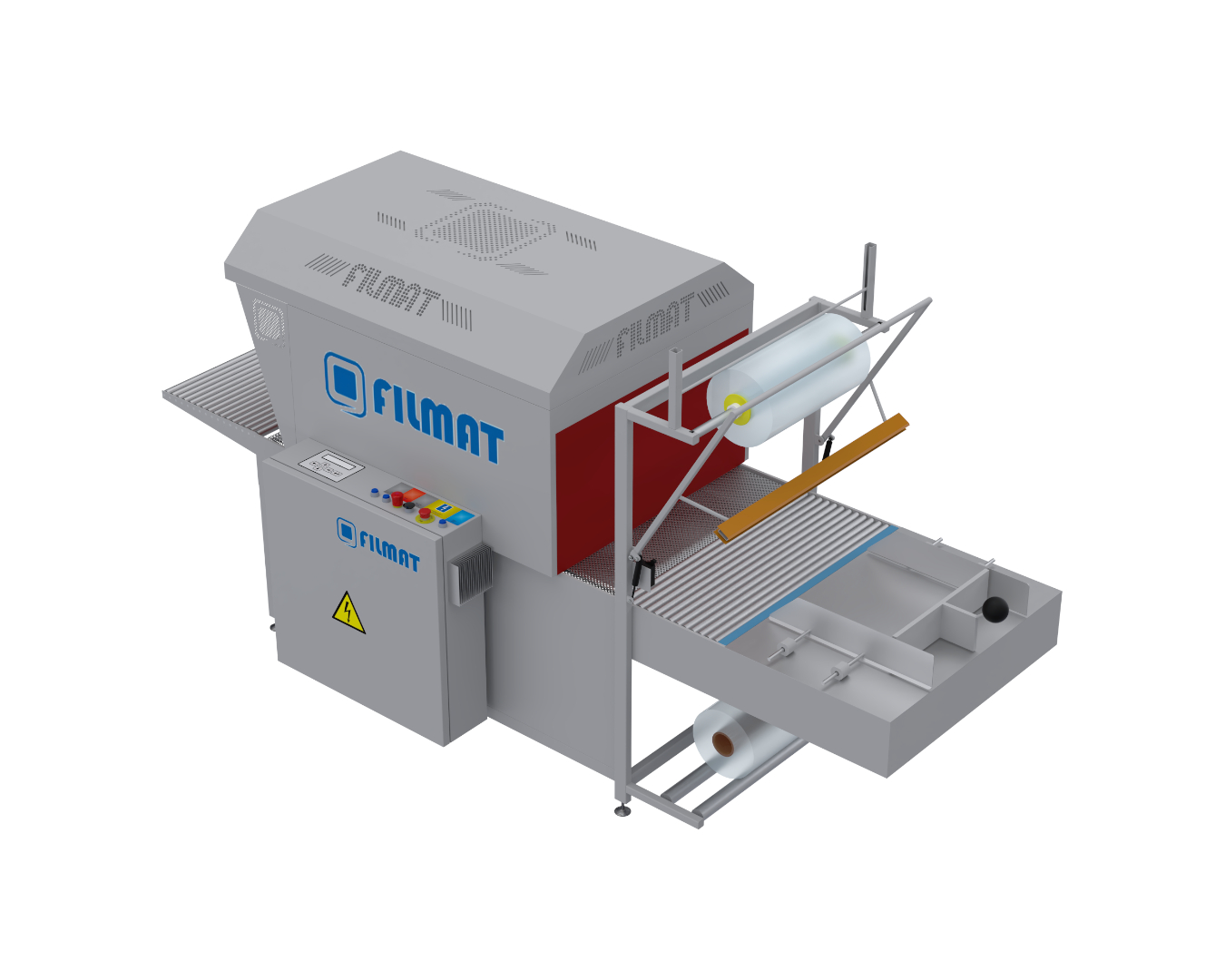

The LPR10X manual packaging line is a simple and universal solution for packaging products such as bottles, jars, cans, and similar items in shrink film. The operator manually forms the package and then lowers the sealing bar to create a secure seal on the product. The finished package is then transport into a shrink tunnel, where final shrinkage and stabilization of the packaging occur. LPR10X is ideal for applications requiring consistent packaging while maintaining ease of operation and flexibility.
Technical specification
- chamber dimensions
- 600mm x 380mm x 1000mm (WxHxD)
- max.package size
- 420mm x 340mm x 300mm (WxHxD)
- film dimensions
- 300 mm, inner diameter 76 mm
- efficiency
- up to 200 packs/h
- conveyor belt speed (AmE/min.)
- constant: 4,0, continuously adjustable: 4,1 - 9,2
- power supply
- 3x 400/230V, 50/60Hz with protection
- current consumption
- 25,0 A
- power installed/average consumption
- 16,5 kW / 5,5 kW
- shrinking temperature
- recommended 140-180°C / allowable 250°C
- shrink time control system
- YES (automatic)
- noise level (A)
- 71 dB
- material
- DC01 steel
- color
- structural, light grey RAL7035
- custom-made
- acid-resistant steel
- weight
- 235 kg
