Packing of medical pads

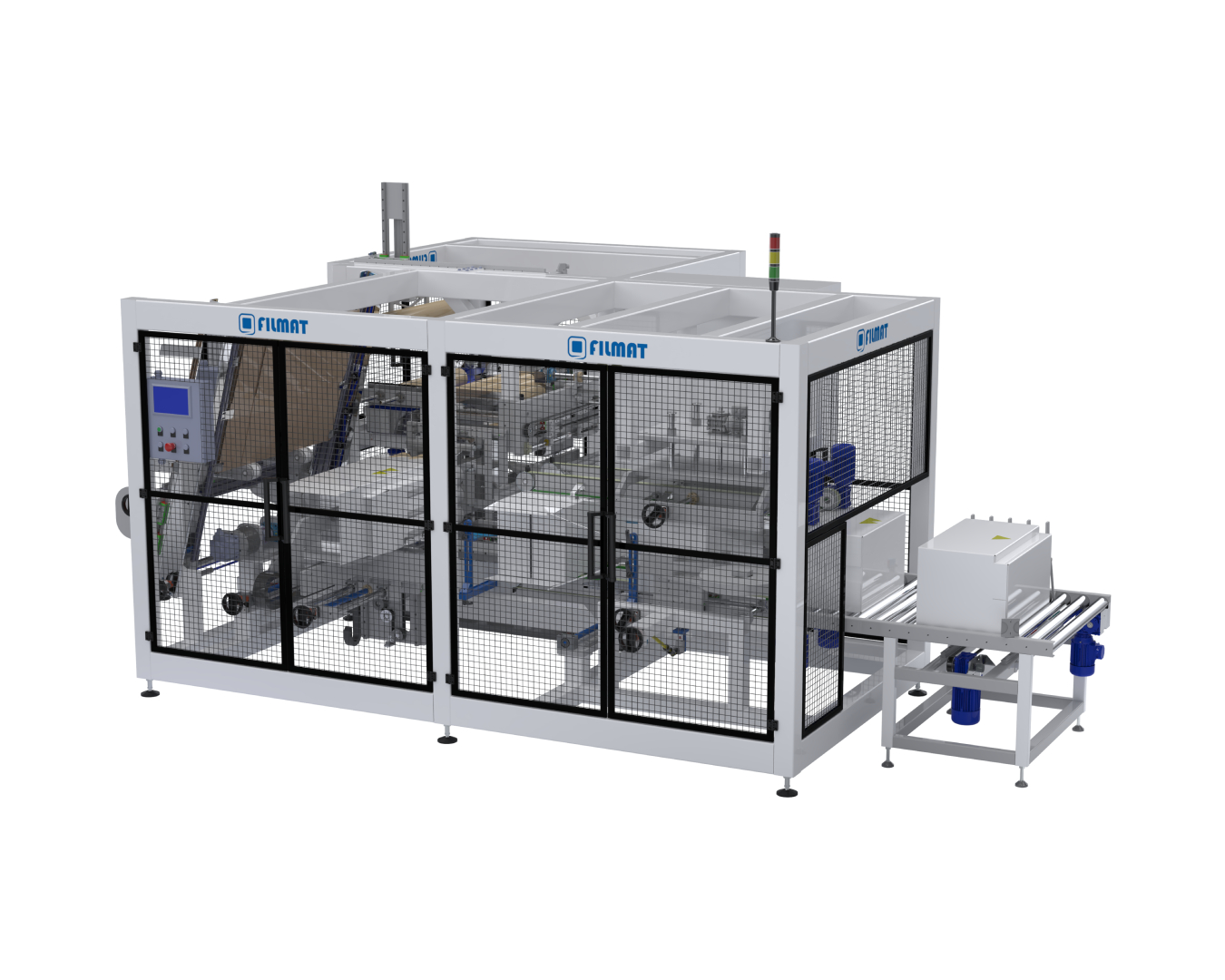

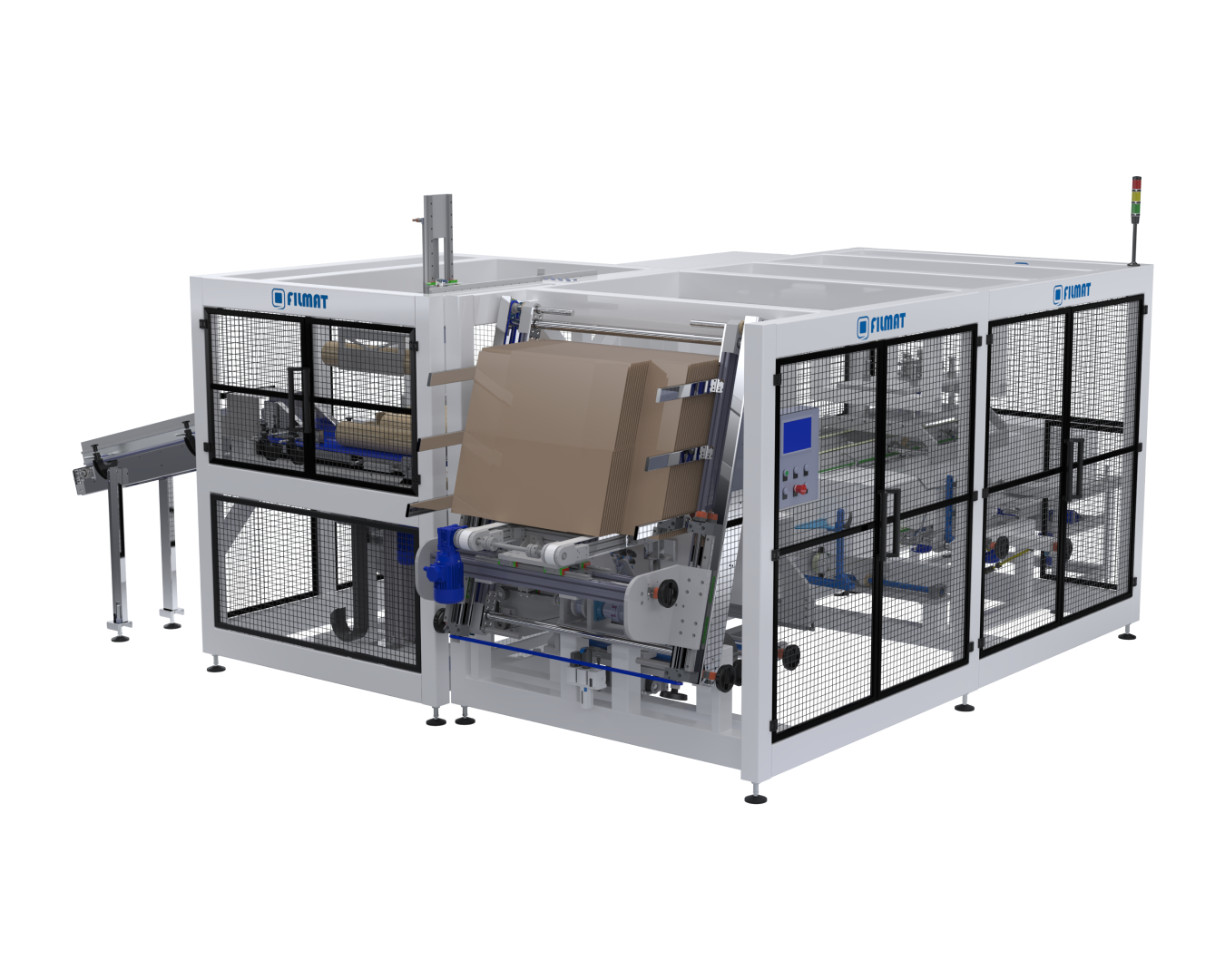

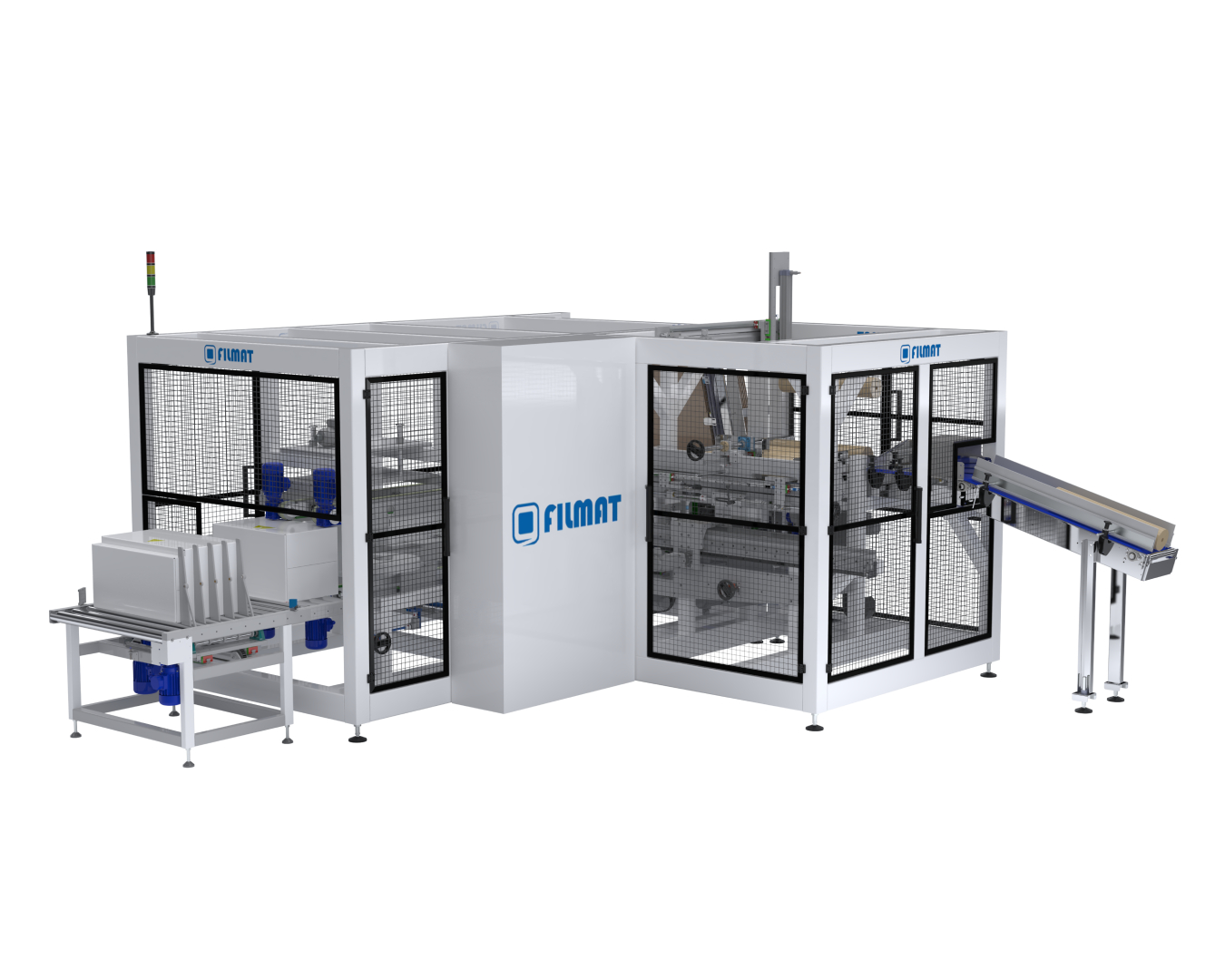

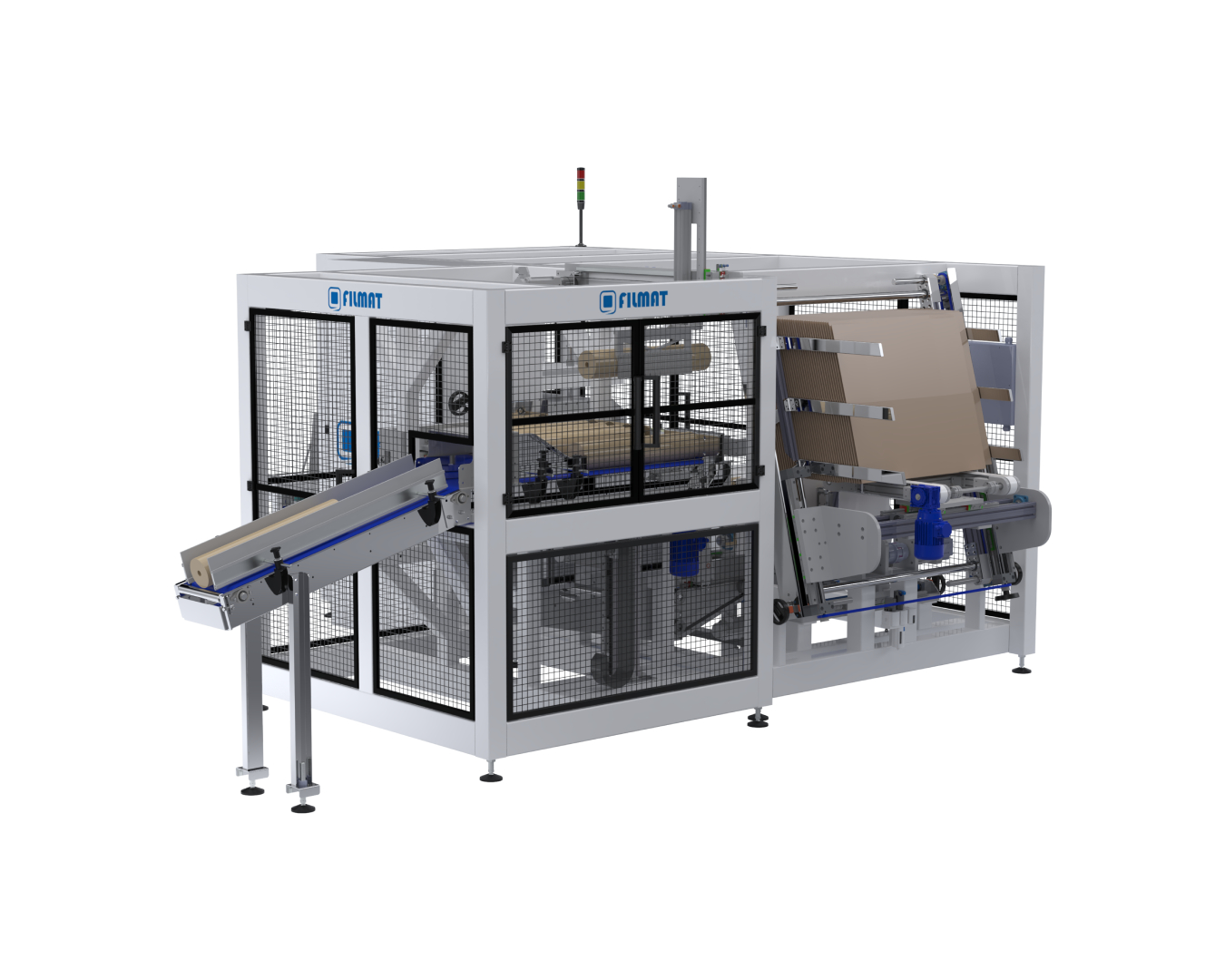

LPAKA10X.M
The LPAKA10X.M case packer is an automatic machine designed for packing medical pads into master cartons. The system allows flexible product formation and grouping prior to carton loading, enabling customizable package configurations. Cartons can be sealed using adhesive tape or a hot-melt glue applicator, such as those supplied by NORDSON. The line delivers stable and repeatable performance of up to 6 cartons per minute, ensuring continuous packing operations.
Technical specification
- chamber dimensions
- N/D
- max.package size
- 397mm x 585mm x 348mm (WxHxD)
- film dimensions
- 300 mm, inner diameter 76 mm
- efficiency
- up to 100 packs/h
- power supply
- 3x 400/230V, 50/60Hz with protection
- current consumption
- 23,0 A
- power installed/average consumption
- 14,0 kW / 9,1 kW
- shrinking temperature
- recommended 140-180°C / allowable 250°C
- shrink time control system
- YES (automatic)
- noise level (A)
- 71 dB
- material
- DC01 steel
- color
- structural, light grey RAL7035
- custom-made
- acid-resistant steel
- weight
- 1900 kg
