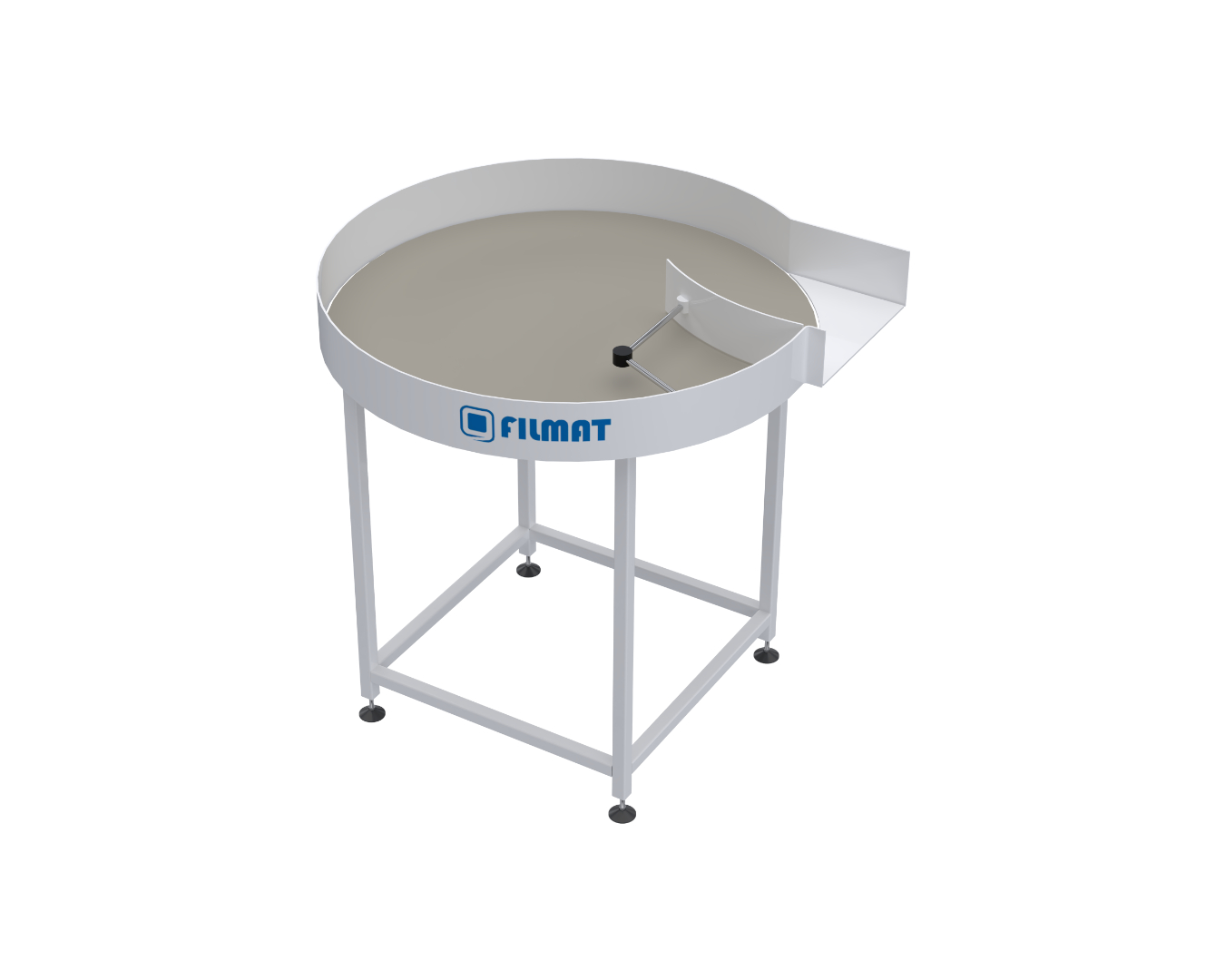

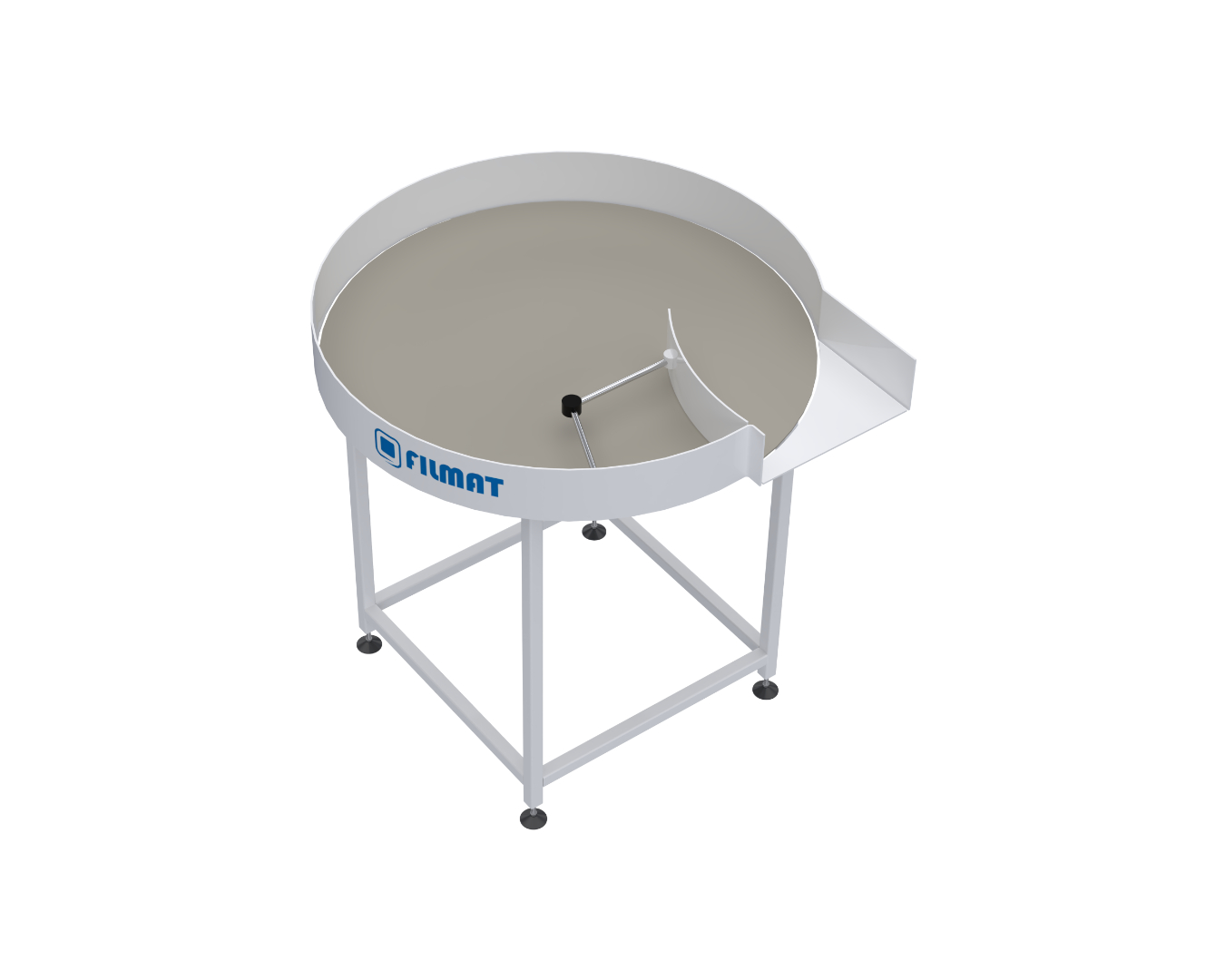

Buffer tables

SB10

Buffer tables: SB10Cabinex
Buffer tables: SB10Buffer tables: SB10

The most efficient solution for a packaging line operating within a production process is the implementation of a buffer table. Installing a buffer table at the infeed enables fast and efficient loading of products onto the table surface, which serves as a temporary accumulation buffer. This allows the machine to operate at maximum throughput, significantly improving the overall process efficiency.

Additionally, the use of a buffer table at the outfeed greatly facilitates the collection of packaged products by providing accumulation capacity on the table surface. This gives the operator sufficient time to prepare downstream handling or palletizing operations.

Technical specification

dimensions (width x height x depth)
configured individually
conveyor belt speed (AmE/min.)
constant: 4,2, continuously adjustable: 2,8 - 9,2
power supply
3x 400/230V, 50/60Hz with protection
noise level (A)
71 dB
material
DC01 steel
color
structural, light grey RAL7035
custom-made
acid-resistant steel
