Automatic packaging lines

LPAK10X

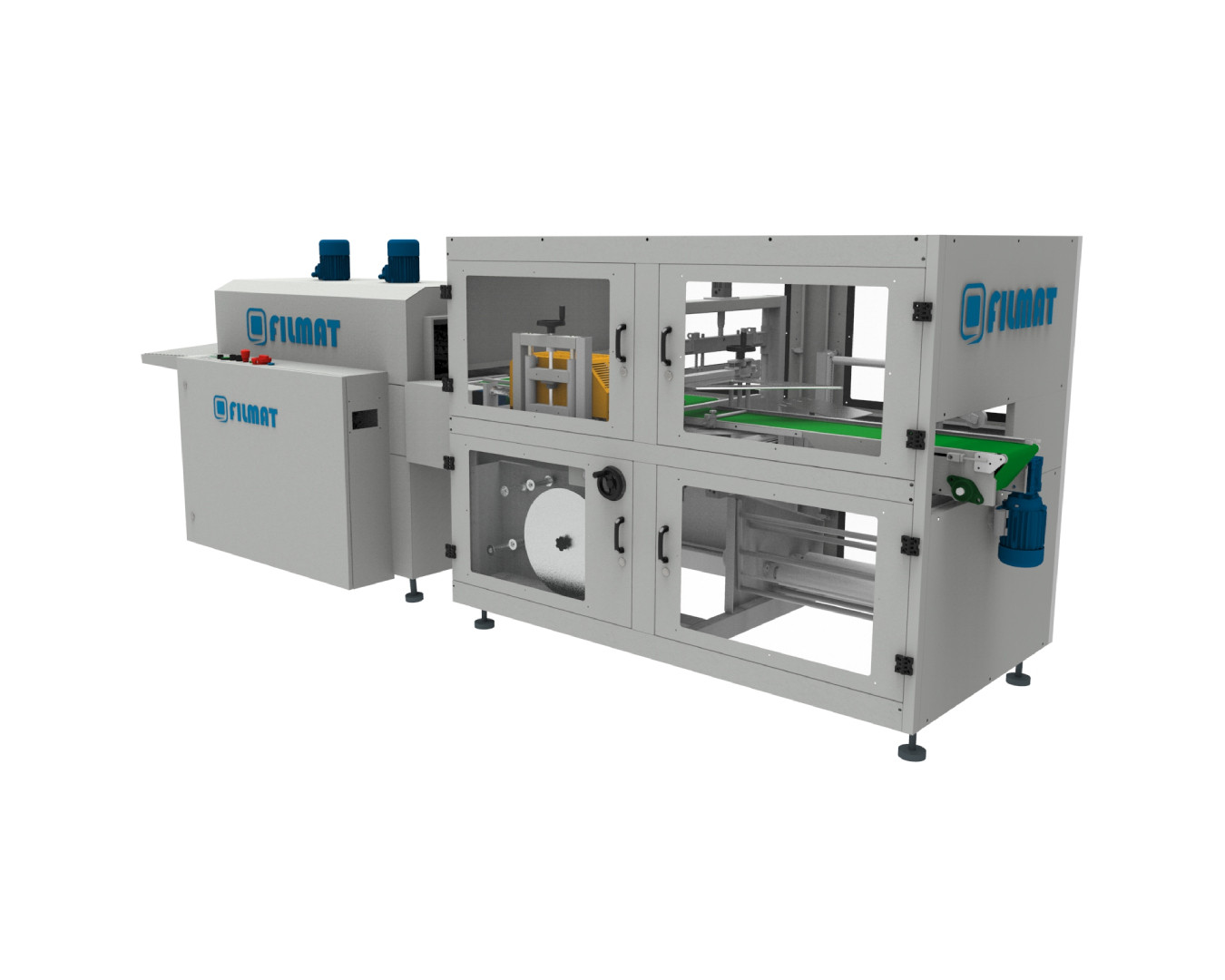

Automatic packaging lines - POF shrink film: LPAK10XCabinex
Automatic packaging lines - POF shrink film: LPAK10X

Automatic packaging line with continuous and cross sealing. Designed for packaging products in film sealed on all four sides. The continuous sealing unit increases packaging efficiency, while the line features automatic product transporting via a linear conveyor. The packaging machine is equipped with a maintenance-free, thermostatically controlled heat-sealing bar. A sensor monitors the sealing process, and a safety brake ensures operator protection. The film roll is mounted in a motorized unwinding unit. The line achieves a efficiency of up to 60 packages per minute, depending on the product and film quality, and is compatible with a wide range of films.

Technical specification

chamber dimensions
N/D
max.package size
397mm x 597mm x 260mm (WxHxD)
film dimensions
300 mm, inner diameter 76 mm
efficiency
up to 100 packs/h
power supply
3x 400/230V, 50/60Hz with protection
current consumption
42,0 A
power installed/average consumption
29,0 kW / 18,8 kW
shrinking temperature
recommended 140-180°C / allowable 250°C
shrink time control system
YES (automatic)
material
DC01 steel
color
structural, light grey RAL7035
custom-made
acid-resistant steel
weight
690 kg
