Automatic packaging lines

LPA22X

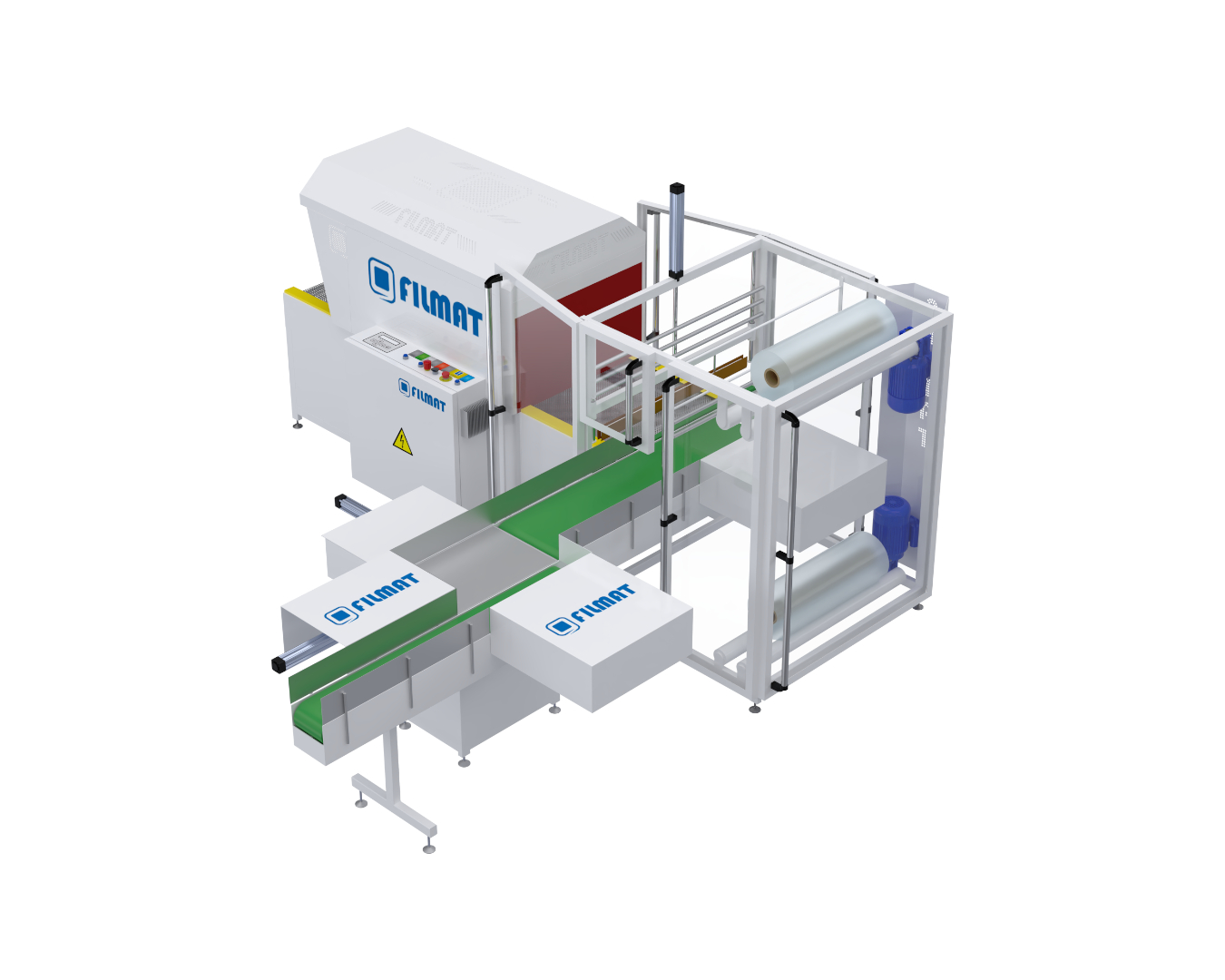

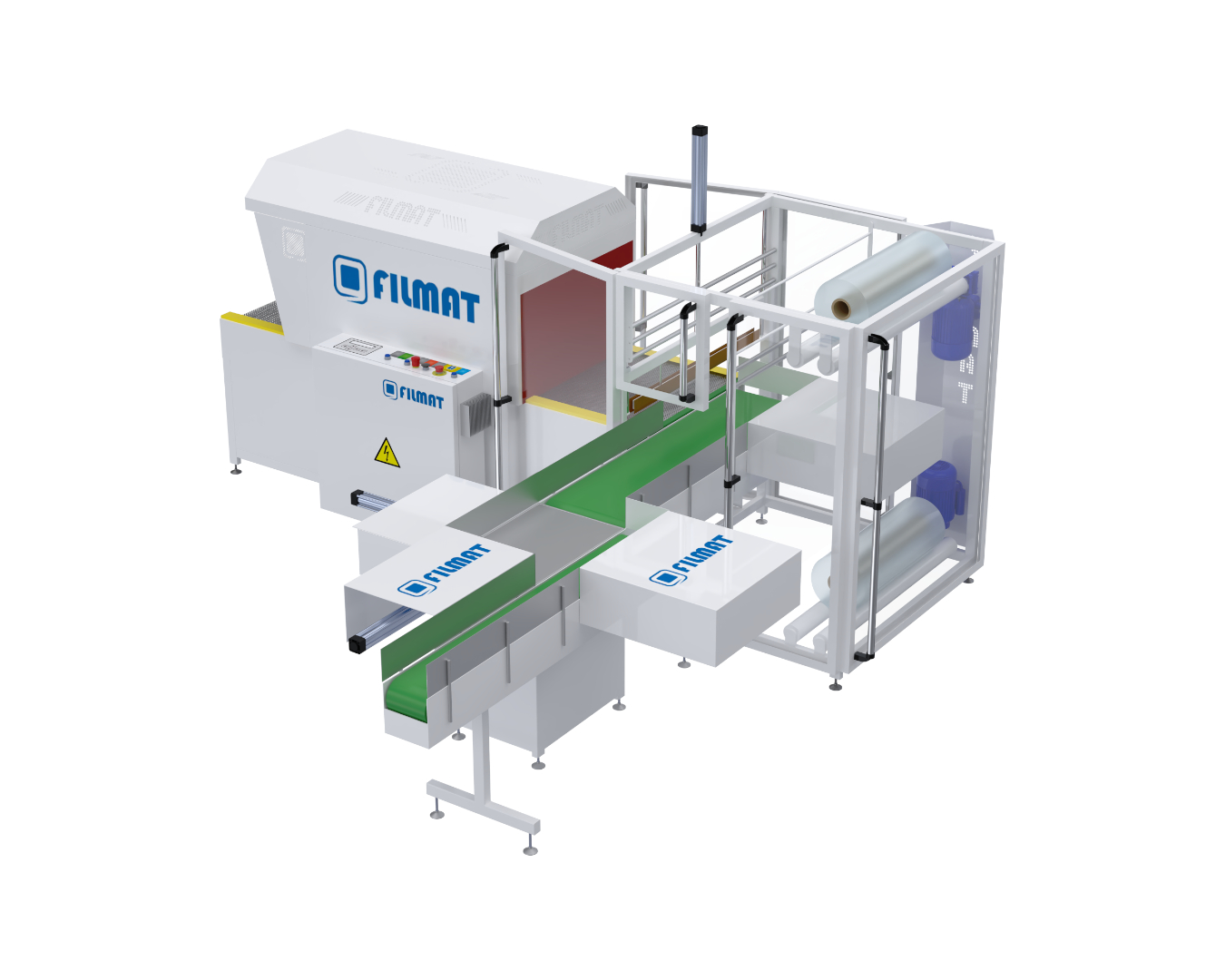

Automatic packaging lines - PE shrink film: LPA22XCabinex
Automatic packaging lines - PE shrink film: LPA22XAutomatic packaging lines - PE shrink film: LPA22X

The LPA22X automatic packaging line is a packaging system designed for the paper industry, suitable for packing toilet paper rolls, paper towels, and wipers in PE film (with or without perforation). This model offers lower efficiency compared to the LPA224, while maintaining full functionality in row formation, package grouping, and layer stacking. The line automatically creates package configurations according to a specified production pattern, ensuring repeatability and process stability. LPA22X is custom-engineered to fit the customer’s facility layout and available space, allowing seamless integration with existing transport and palletizing systems. It provides an optimal solution for facilities looking for packaging automation at a medium production scale.

Technical specification

chamber dimensions
configured individually
max.package size
configured individually
film dimensions
configured individually
constant-heat shrinking unit
YES (2+1 in the middle)
efficiency standard/optional
up to 12 packs/min. / 20 packs/min.
conveyor belt speed (AmE/min.)
constant: 4,0, continuously adjustable: 4,1 - 9,2
power supply
3x 400/230V, 50/60Hz with protection
current consumption
20,0 A
power installed/average consumption
15,5 kW / 6,0 kW
shrinking temperature
recommended 140-180°C / allowable 250°C
compressed air
0,7 Mpa
air consumption
12 m3/h
noise level (A)
75 dB
material
DC01 steel
color
structural, light grey RAL7035
custom-made
acid-resistant steel
weight
335 kg
