Automatic packaging lines

LPA224

Automatic packaging lines - PE shrink film: LPA224Cabinex
Automatic packaging lines - PE shrink film: LPA224Automatic packaging lines - PE shrink film: LPA224Automatic packaging lines - PE shrink film: LPA224Automatic packaging lines - PE shrink film: LPA224

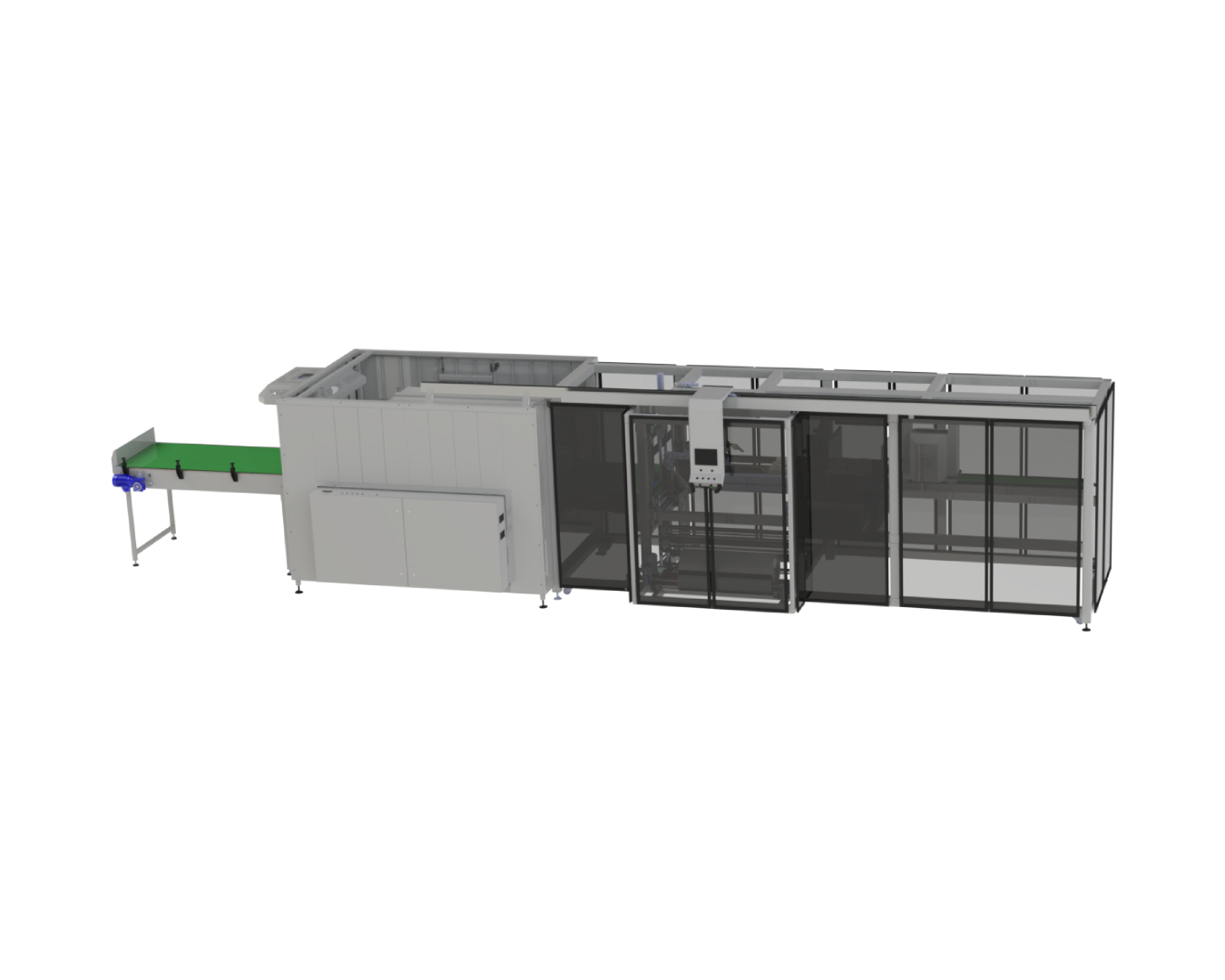

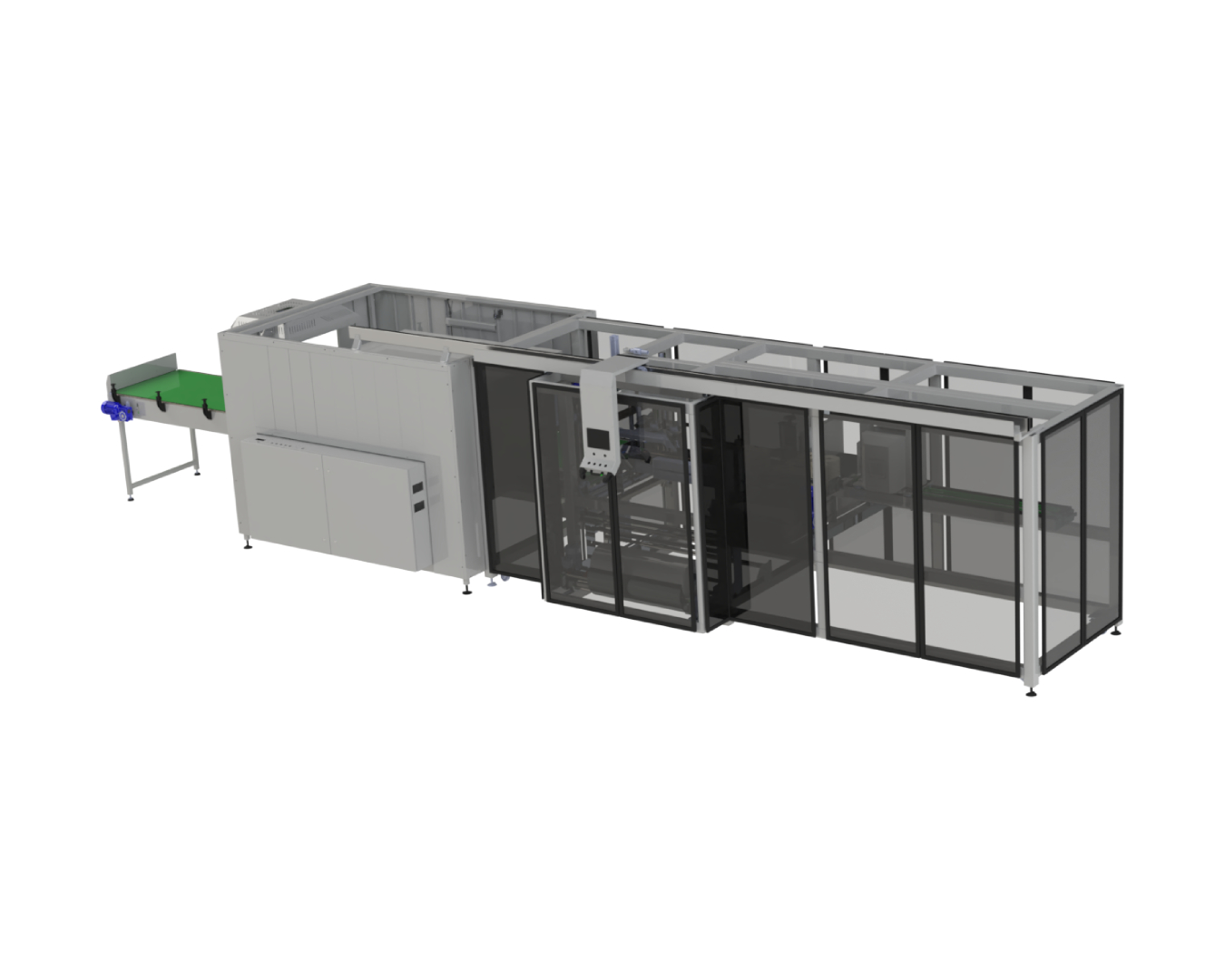

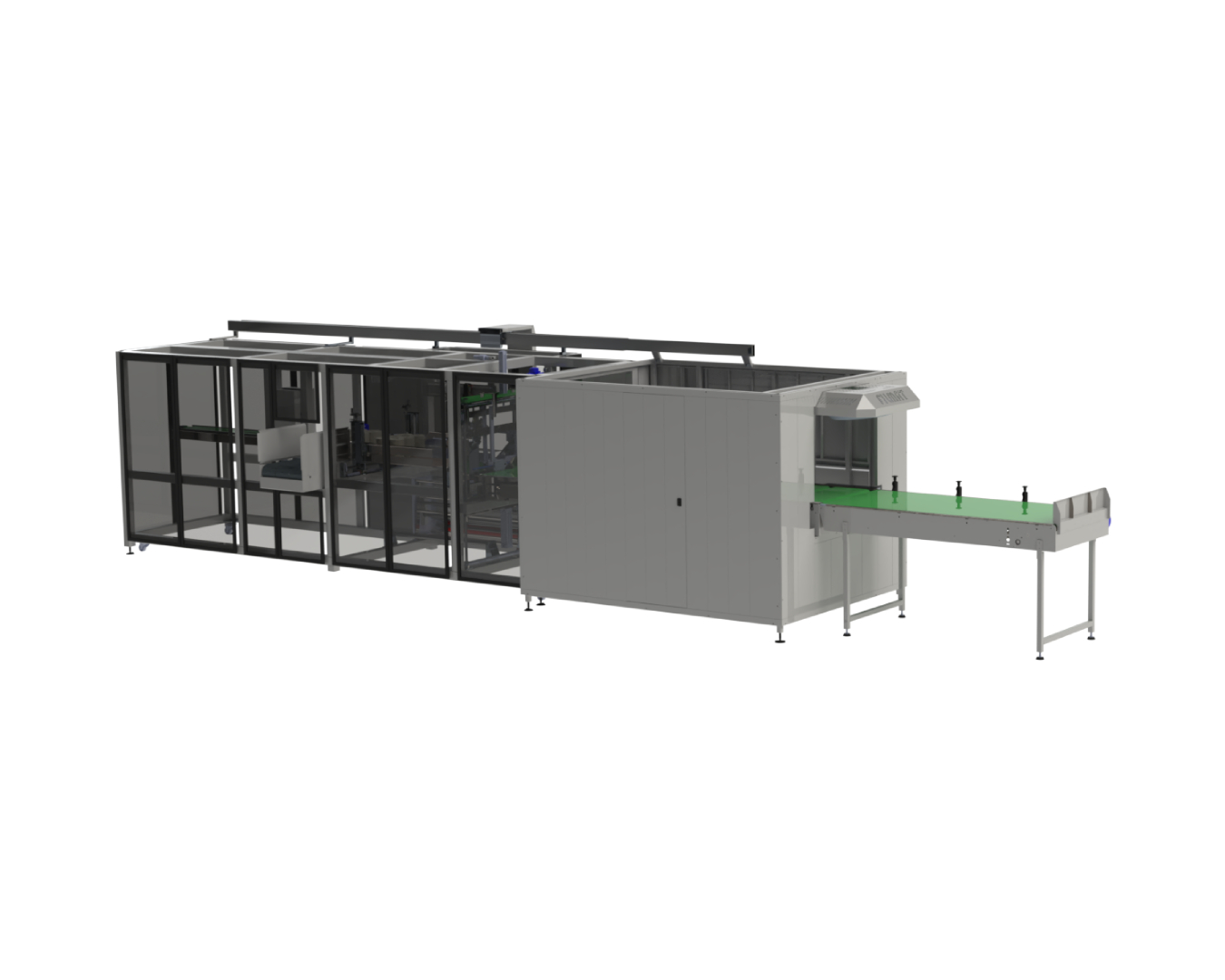

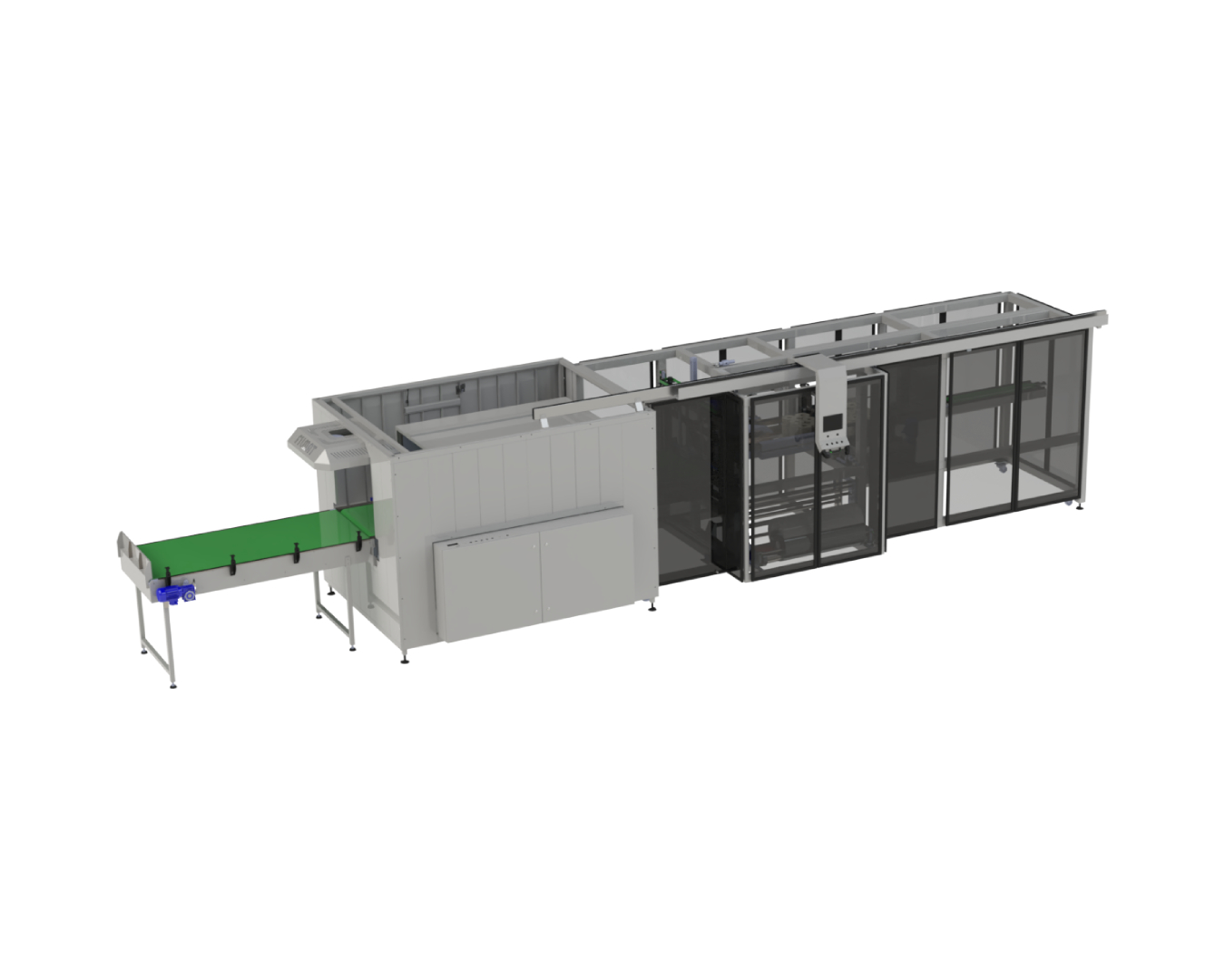

The LPA224 automatic packaging line is an advanced system designed for the paper industry, enabling the packaging of toilet paper rolls, paper towels, and wipers in PE film (with or without perforation). The line automatically forms rows, groups packages, and allows layer stacking according to a specified packaging pattern. The system is custom-engineered to suit the production conditions and available space at the customer’s facility, ensuring full integration with existing production lines. LPA224 provides a solution for facilities looking for high efficiency, repeatability, and flexible package configuration.

Technical specification

chamber dimensions
980mm x 560mm x 1700mm (WxHxD)
max.package size
850mm x 450mm x 1500mm (WxHxD)
film dimensions
300 mm, inner diameter 76 mm
efficiency
up to 360 packs/h
power supply
3x 400/230V, 50/60Hz with protection
current consumption
63,0 A
power installed/average consumption
41,0 kW / 26,0 kW
shrinking temperature
recommended 140-180°C / allowable 250°C
shrink time control system
YES (automatic)
noise level (A)
71 dB
material
DC01 steel
color
structural, light grey RAL7035
custom-made
acid-resistant steel
weight
1200 kg
