Automatic packaging lines

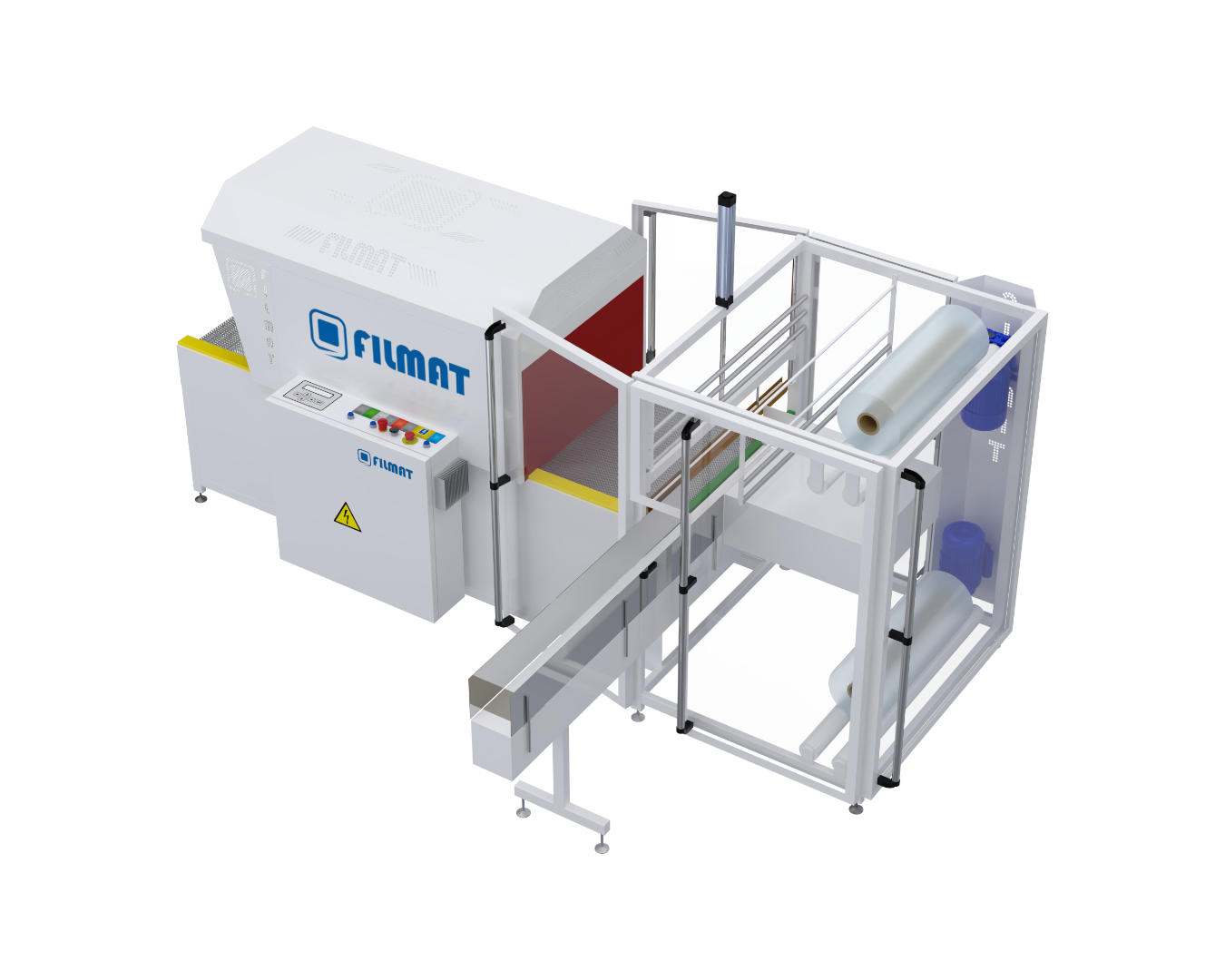

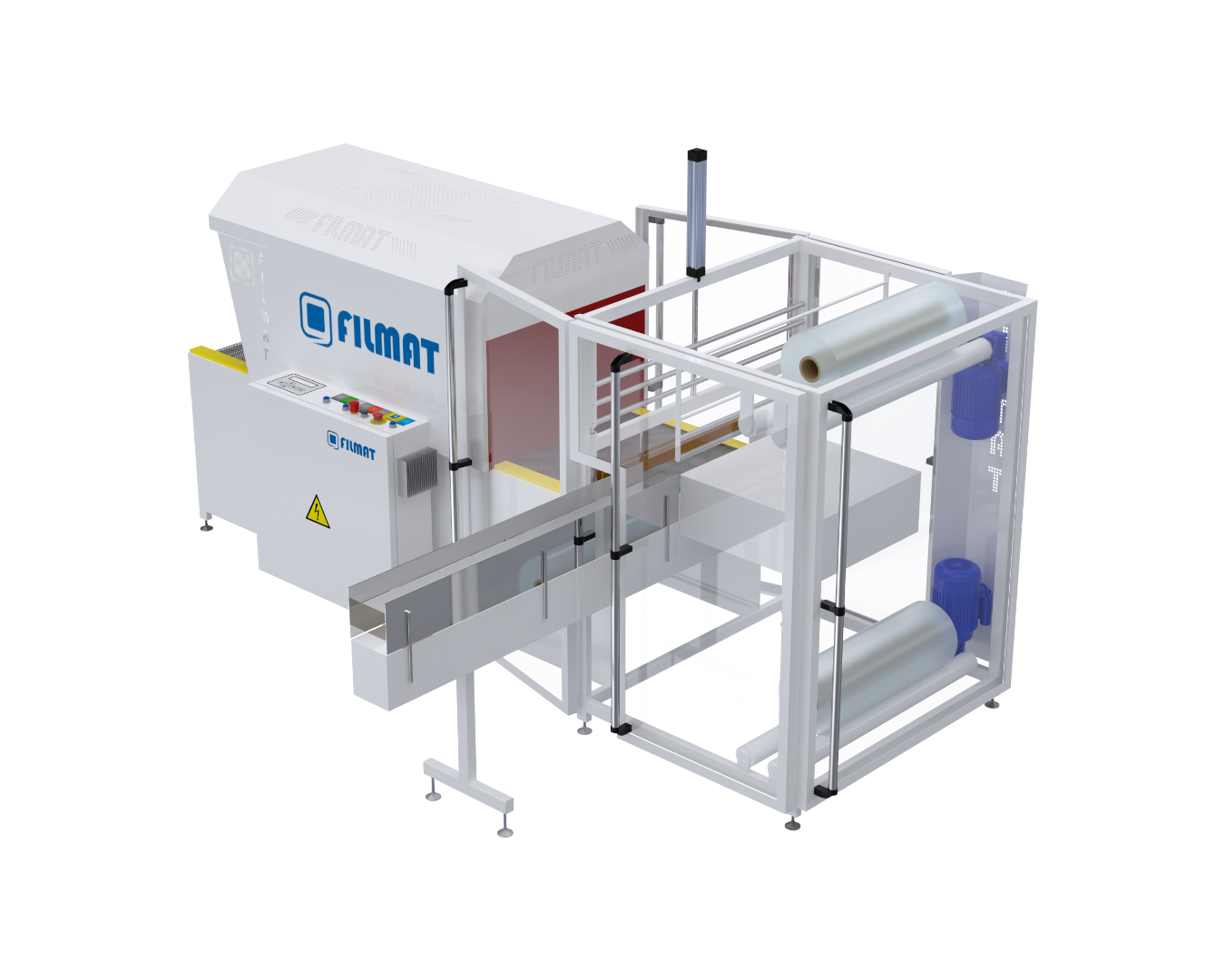

LPA21X
The LPA21X automatic packaging line is a universal system designed for packaging a wide range of products, including cans, jars, bottles, and cartons. Products supplied in a single row (e.g., directly from a labeling machine) are automatically formed into packages, wrapped in film, and then conveyed in an automated cycle to a shrink tunnel. The line is built on a single-frame structure, ensuring a compact footprint, ergonomic operation, and easy integration with existing production lines. It provides a flexible solution for facilities looking for efficient and consistent shrink-film packaging of multiple products.
Technical specification
- chamber dimensions
- 1000 mm (length)
- max.package size
- 1000 mm (length)
- film dimensions
- configured individually
- constant-heat shrinking unit
- YES (2+1 in the middle)
- efficiency standard/optional
- up to 12 packs/min. / 20 packs/min.
- conveyor belt speed (AmE/min.)
- constant: 4,0, continuously adjustable: 4,2 - 9,2
- power supply
- 3x 400/230V, 50/60Hz with protection
- current consumption
- 20,0 A
- power installed/average consumption
- 15,5 kW / 6,0 kW
- shrinking temperature
- recommended 140-180°C / allowable 250°C
- compressed air
- 0,7 Mpa
- air consumption
- 12 m3/h
- noise level (A)
- 75 dB
- material
- DC01 steel
- color
- structural, light grey RAL7035
- custom-made
- acid-resistant steel
- weight
- 335 kg
