Automatic packaging lines

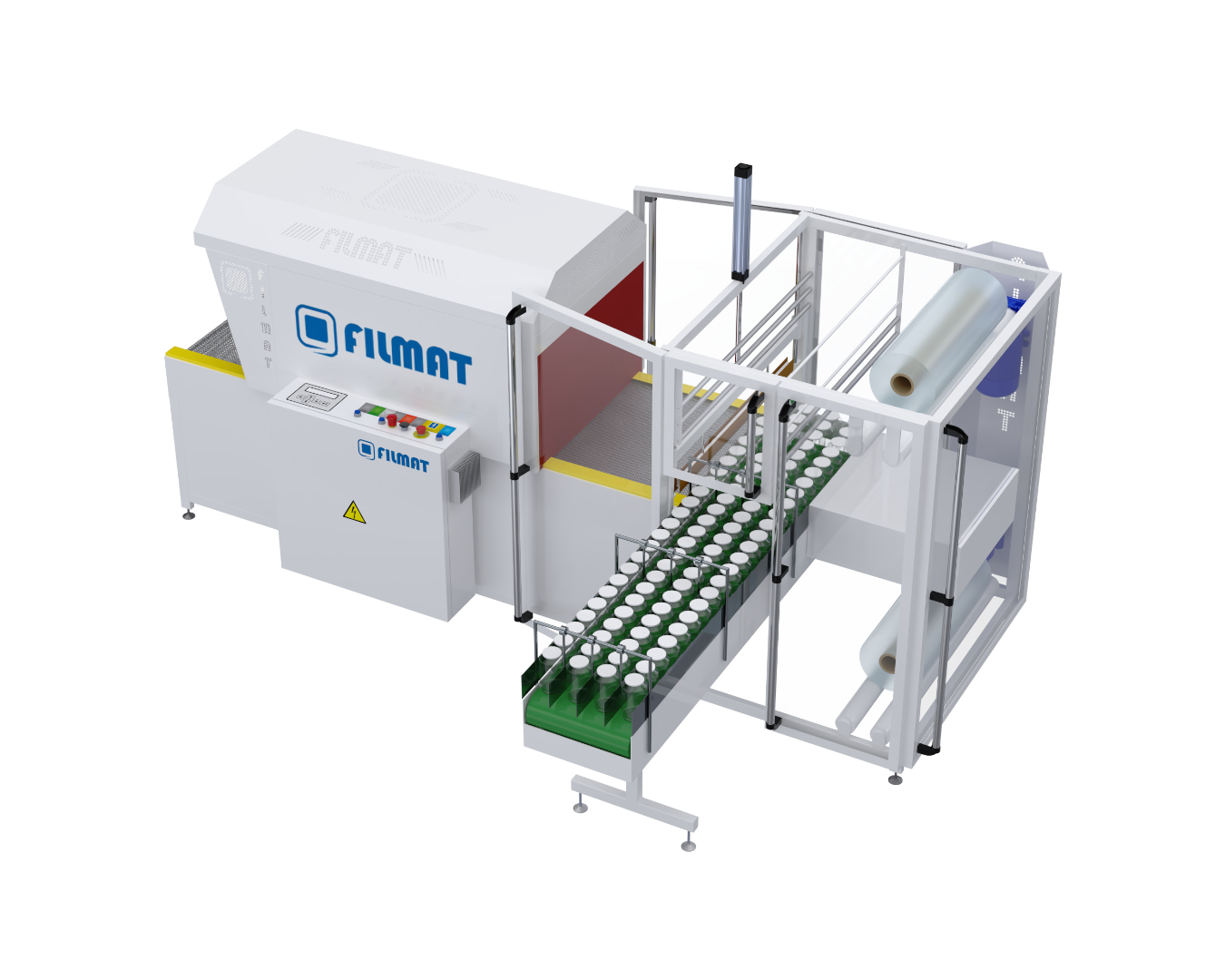

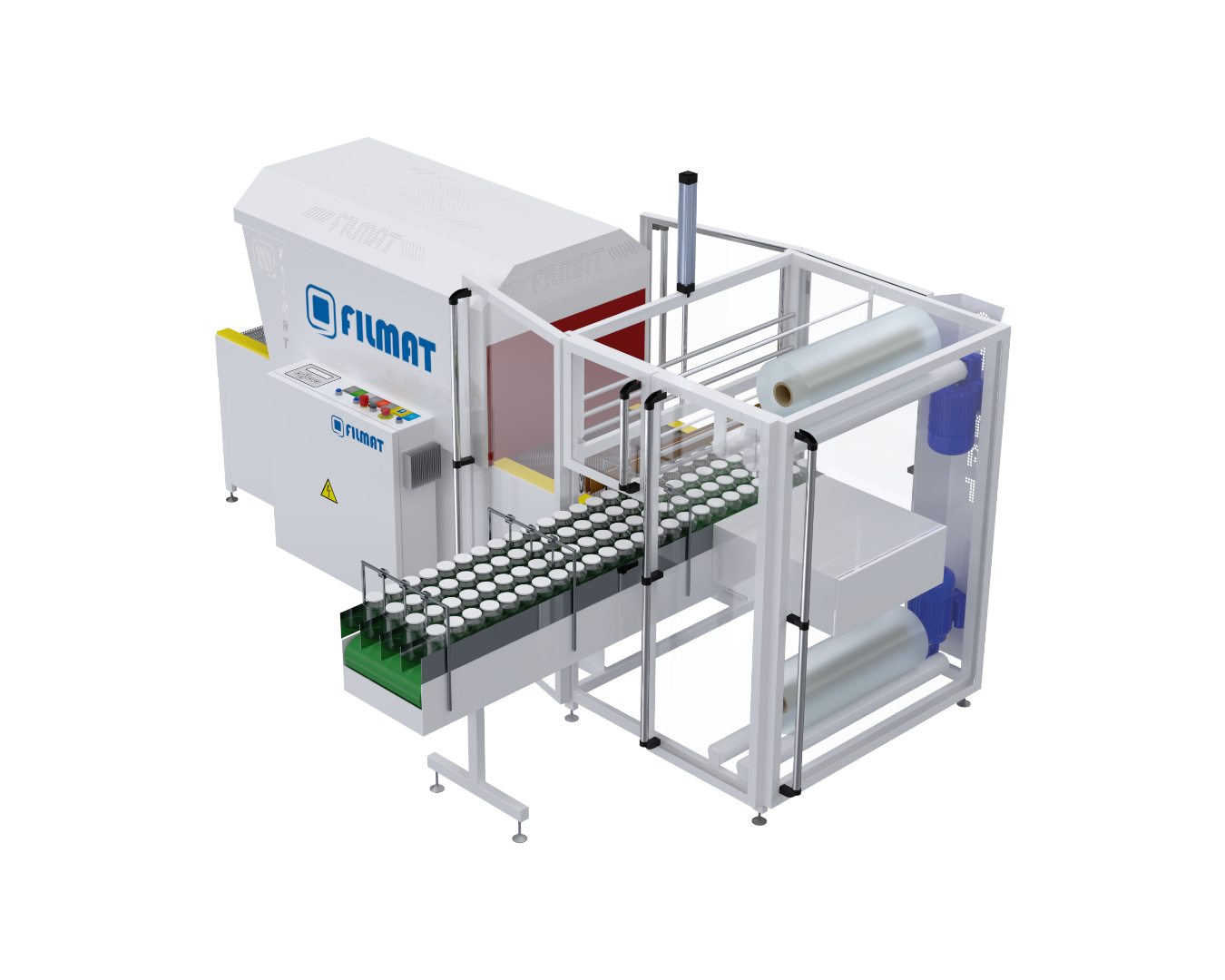

LPA20X
The LPA20X automatic packaging line is a universal system for packaging cans, jars, bottles, cartons, and other products supplied in a single row from the production line (e.g., from a labeling machine). Compared to the LPA21X model, it offers higher packaging efficiency while maintaining full automation of row formation and package grouping. Products are automatically wrapped in film and continuously conveyed to a shrink tunnel for sealing. Its compact design and single-frame construction provide user-friendly ergonomics and easy integration with existing production lines.
Technical specification
- chamber dimensions
- configured individually
- max.package size
- configured individually
- film dimensions
- configured individually
- constant-heat shrinking unit
- YES (2+1 in the middle)
- efficiency standard/optional
- up to 12 packs/min. / N/D
- conveyor belt speed (AmE/min.)
- constant: 4,0, continuously adjustable: 4,2 - 9,2
- power supply
- 3x 400/230V, 50/60Hz with protection
- current consumption
- 40,0 A
- power installed/average consumption
- 28,0 kW / 15,0 kW
- shrinking temperature
- recommended 140-180°C / allowable 250°C
- compressed air
- 0,7 Mpa
- air consumption
- 12 m3/h
- noise level (A)
- 75 dB
- material
- DC01 steel
- color
- structural, light grey RAL7035
- custom-made
- acid-resistant steel
- weight
- 700 kg
