Automatic packaging lines

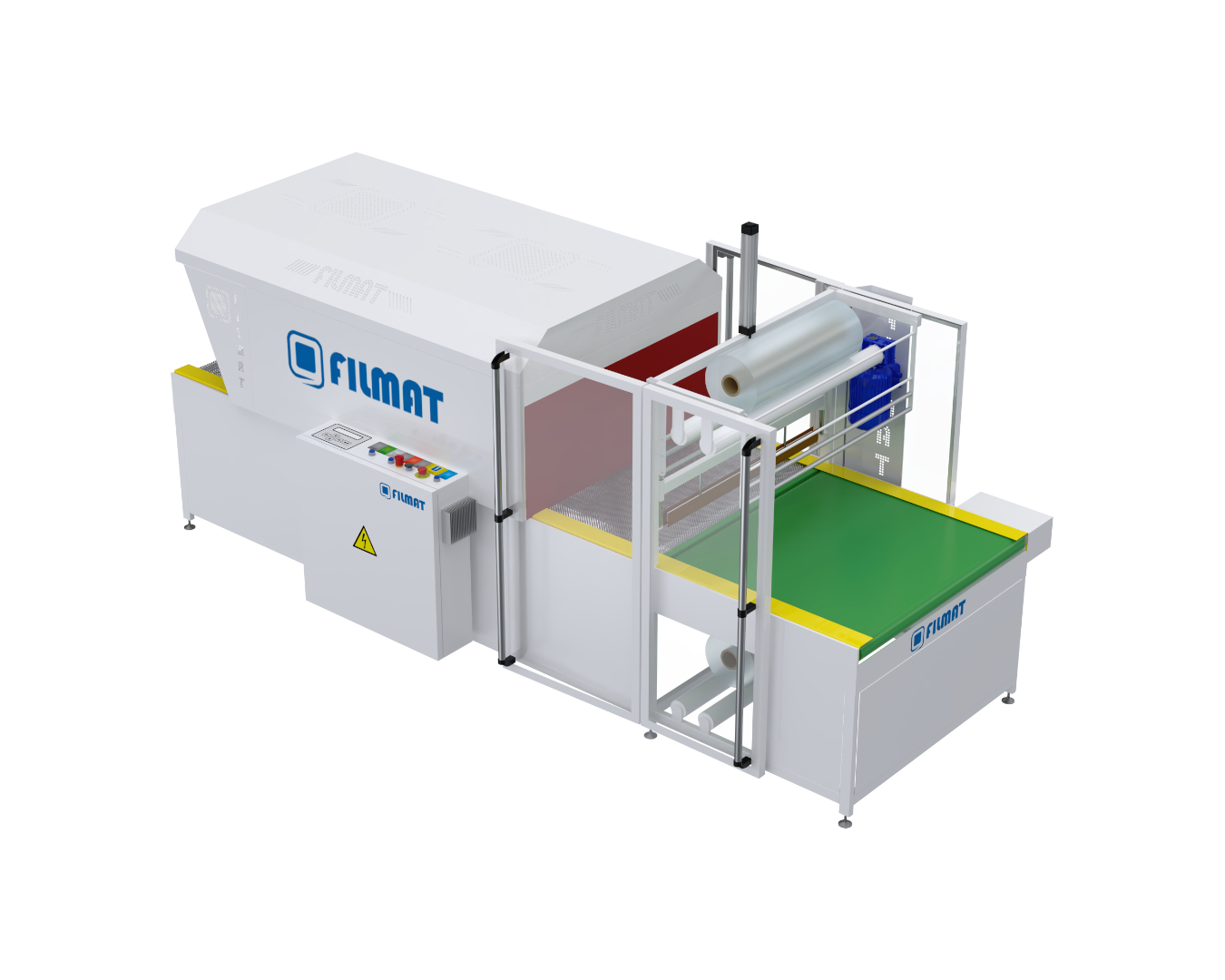

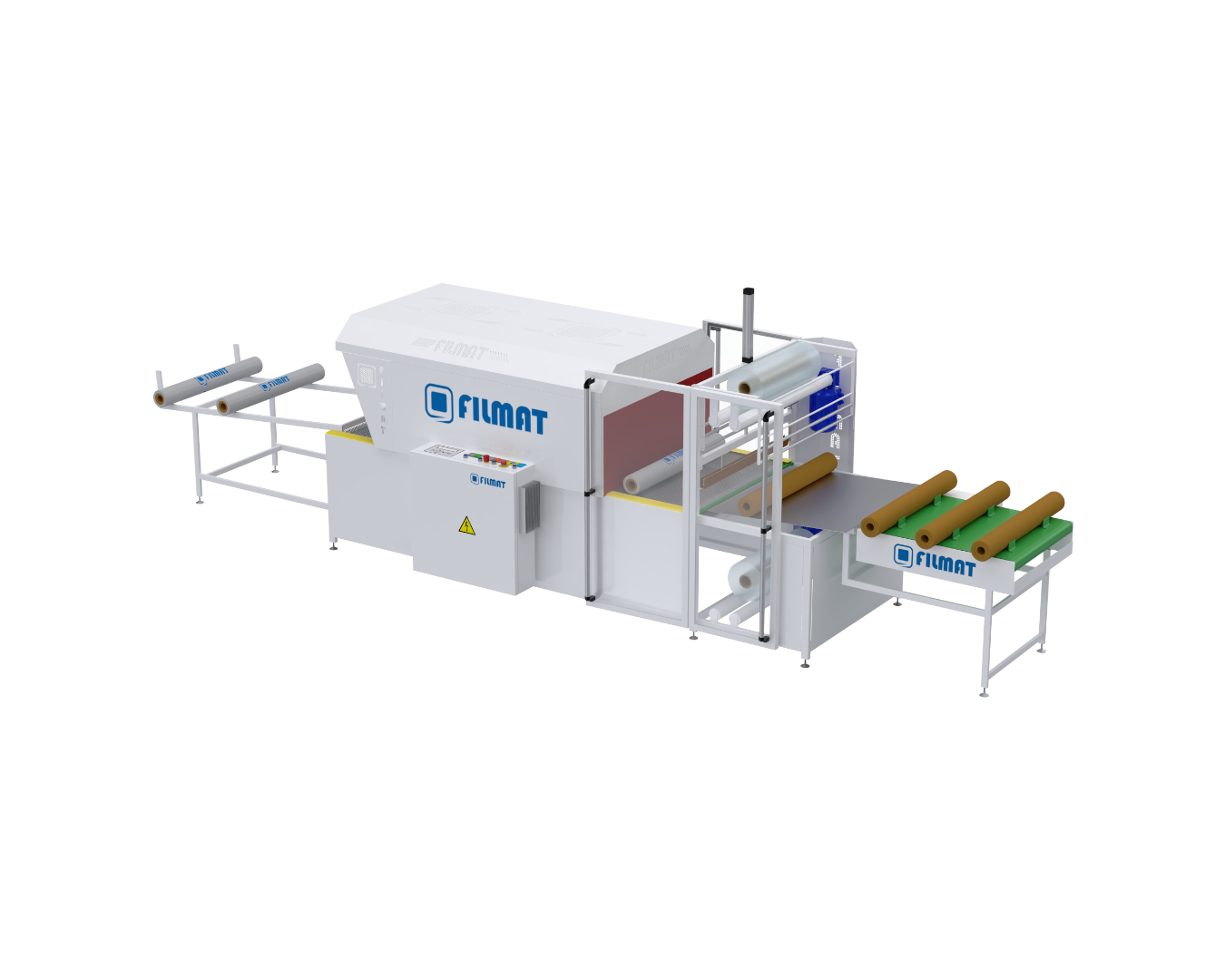

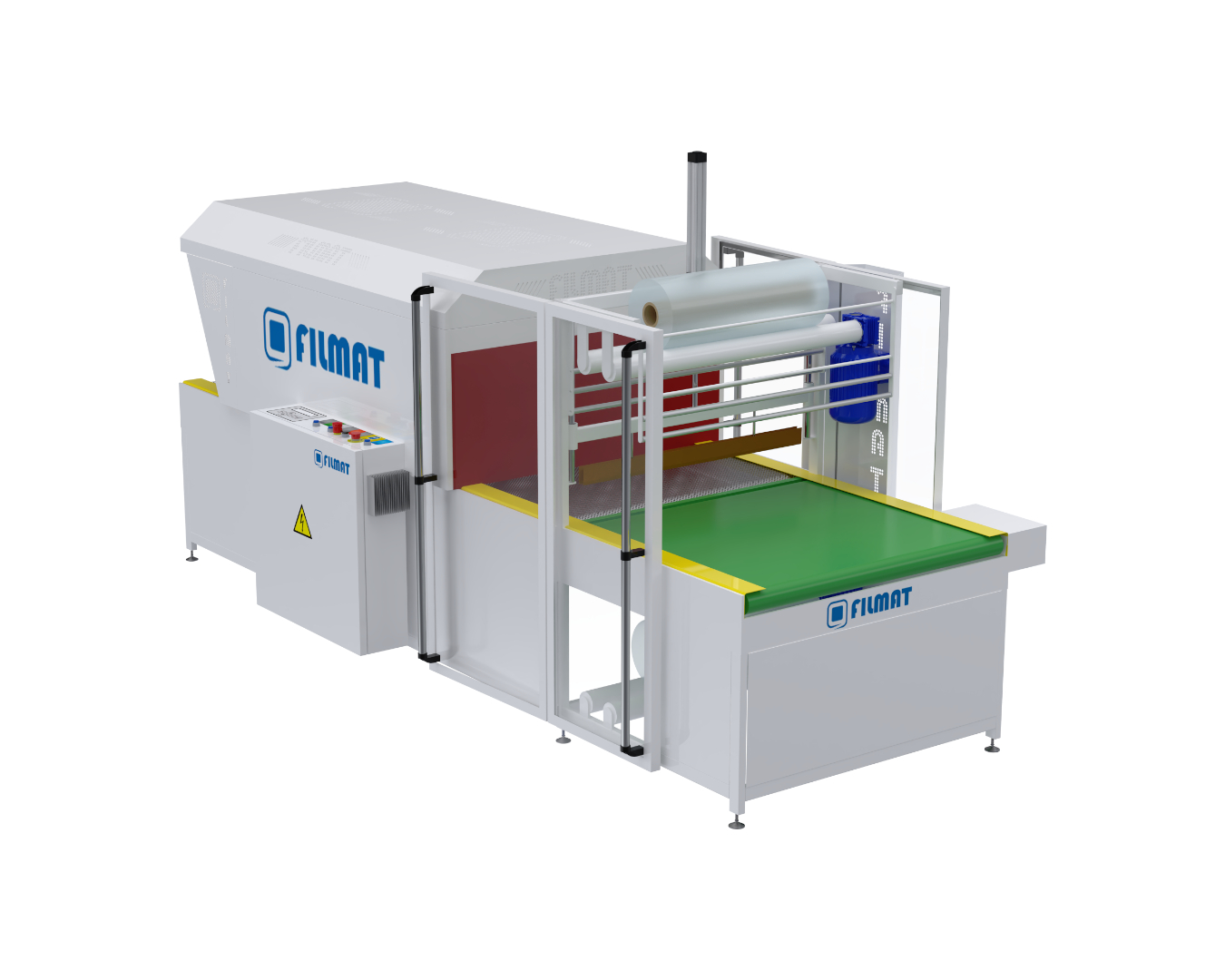

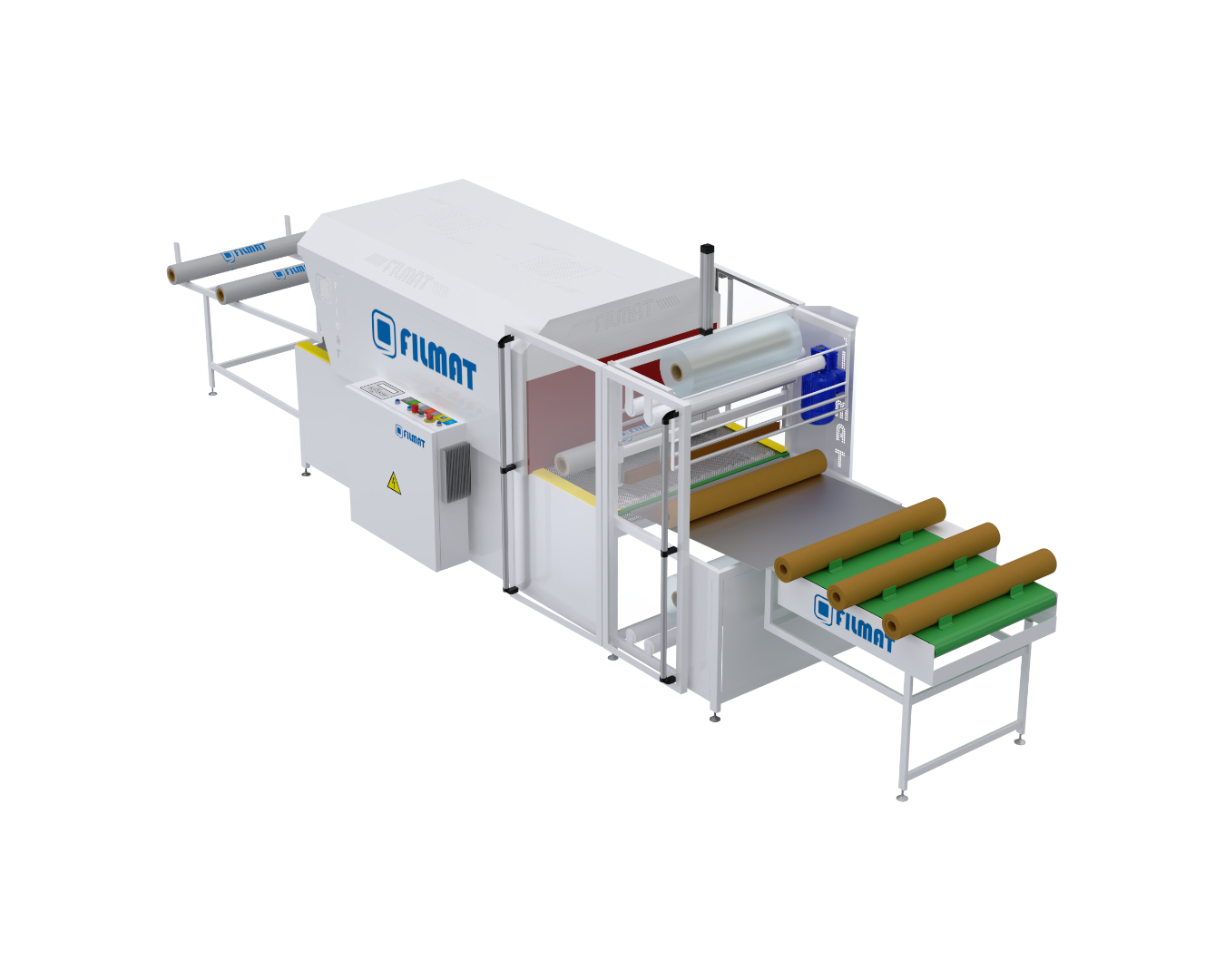

LPA15X
The LPA15X automatic packaging line is a universal system designed for packaging and securing products such as cartons, buckets, roofing membranes, construction films, and roofing shingles. The line delivers a stable and repeatable wrapping and shrink-wrapping process, ensuring effective product protection during transport and storage. Depending on the configuration, it can be built on a single compact frame or extended modularly to meet individual customer requirements. The LPA15X offers a flexible solution for facilities looking for reliable packaging of larger-sized products.
Technical specification
- chamber dimensions
- 1300mm x 800mm x 1400mm WxHxD)
- max.package size
- ø 940 mm
- film dimensions
- 300 mm, inner diameter 76 mm
- constant-heat shrinking unit
- YES (2+1 in the middle)
- efficiency standard/optional
- up to 1000 packs/min. / 10 rows
- conveyor belt speed (AmE/min.)
- continuously adjustable: 2,0 - 4,2
- power supply
- 3x 400/230V, 50/60Hz with protection
- current consumption
- 40,0 A
- power installed/average consumption
- 30,0 kW / 20,0 kW
- shrinking temperature
- recommended 140-180°C / allowable 250°C
- compressed air
- 0,7 Mpa
- air consumption
- 3 m3/h
- material
- DC01 steel
- color
- structural, light grey RAL7035
- custom-made
- acid-resistant steel
- weight
- 1100 kg
