OP10R

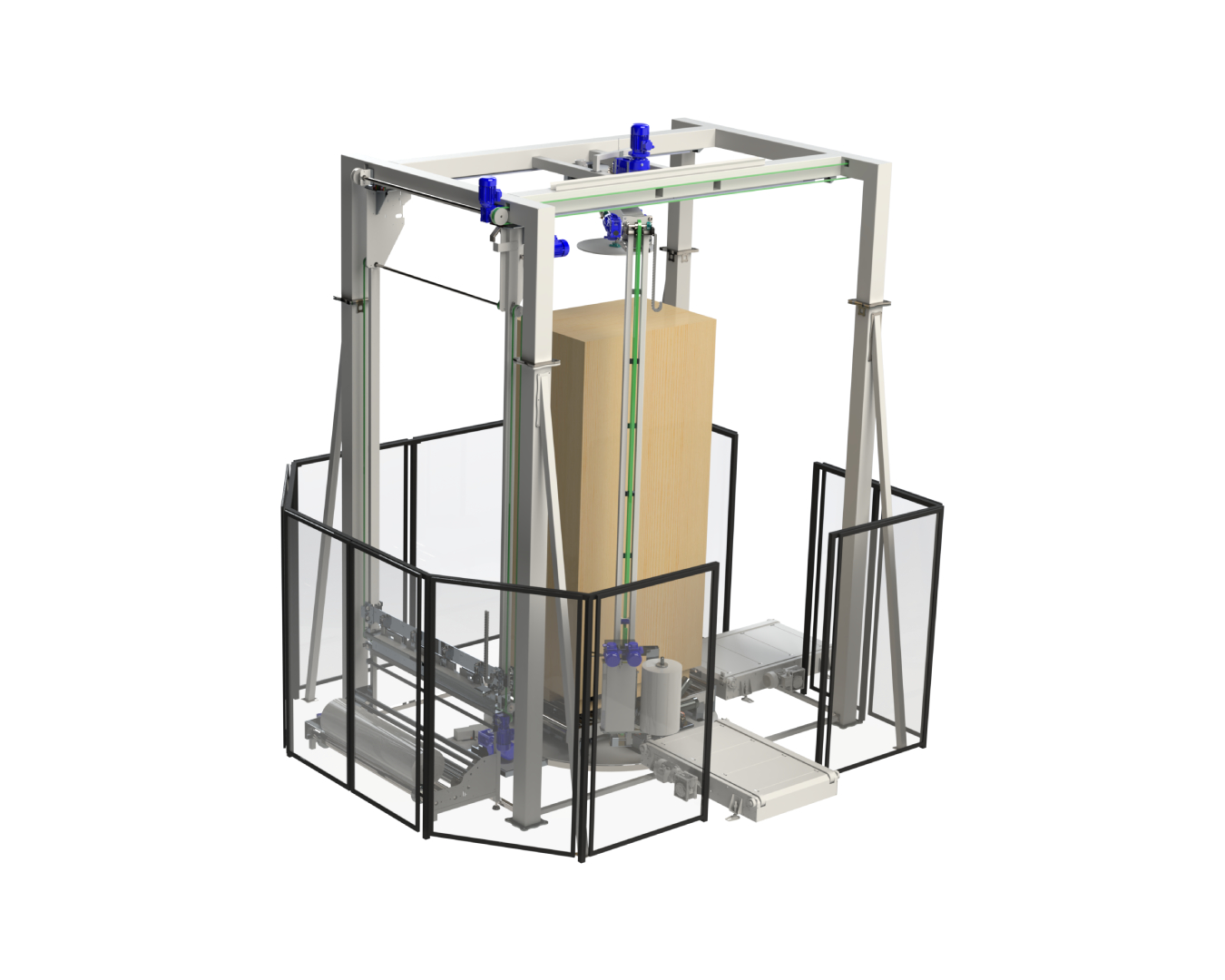

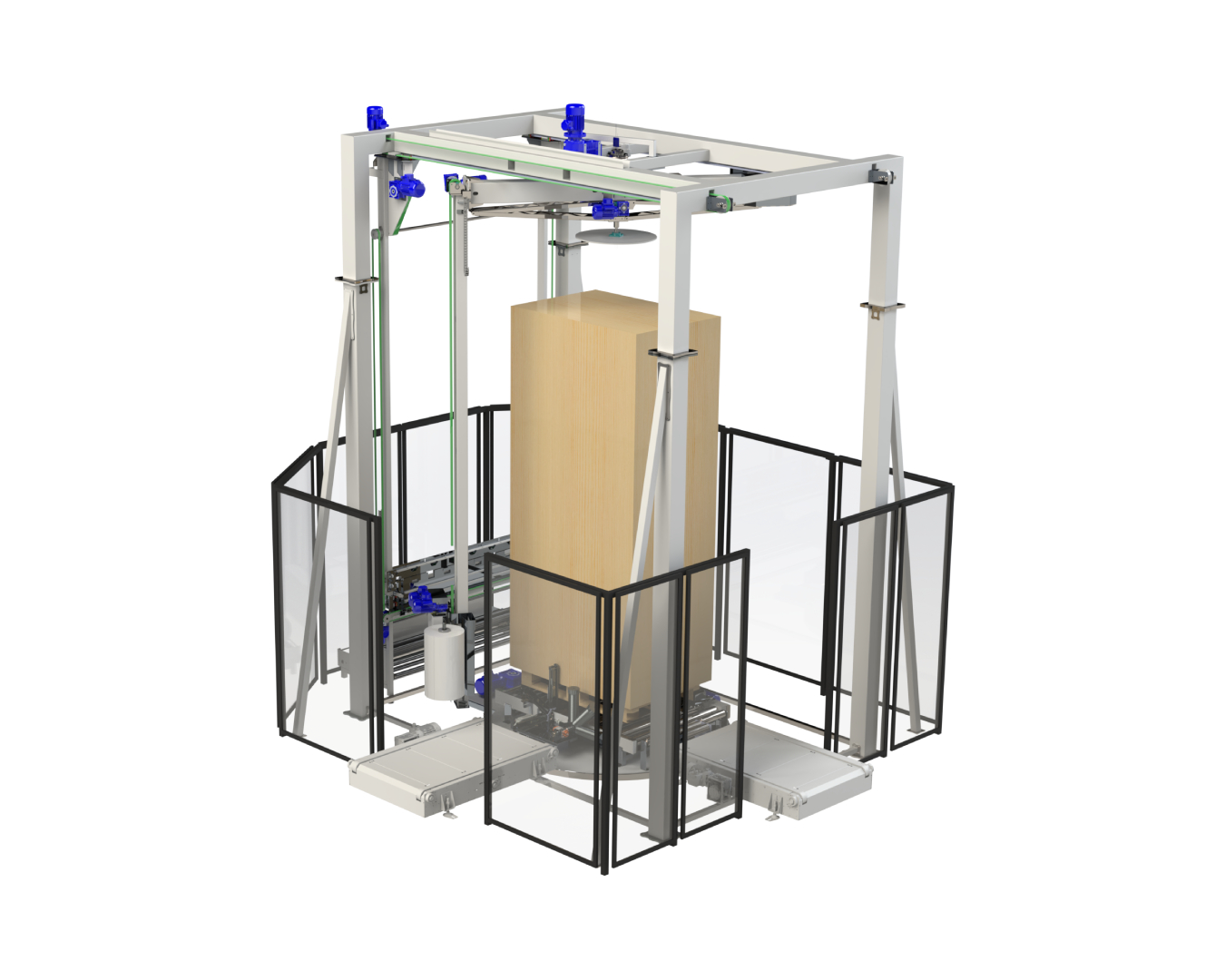

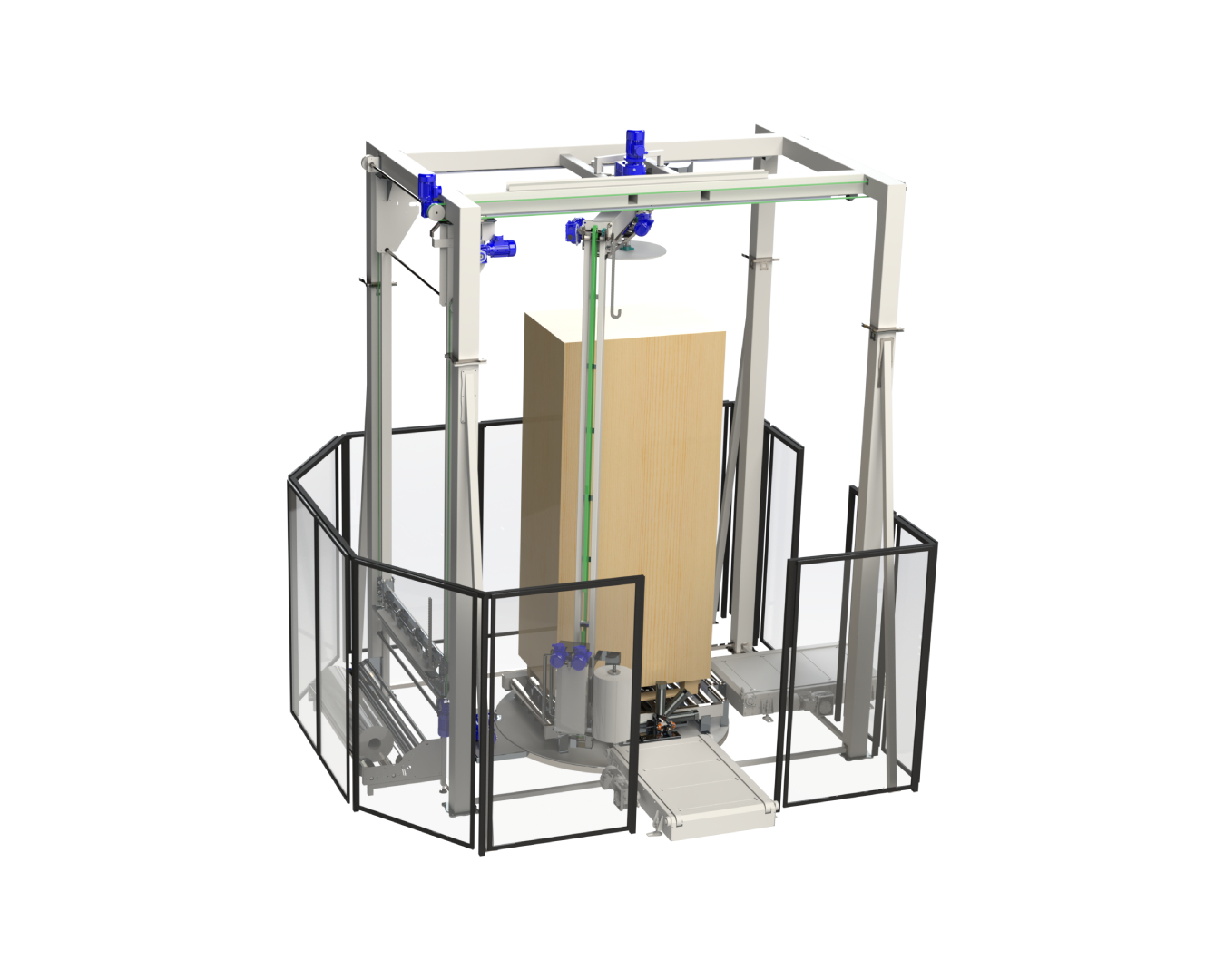

The rotary arm pallet wrapper is designed for automatic wrapping of palletized loads with stretch film to ensure secure protection during transport and storage. The machine is based on a rotating arm design, which allows the load to remain stationary during the wrapping process, making it an ideal solution for unstable, heavy, or oversized products.

The machine provides high efficiency and excellent wrapping repeatability while optimizing film consumption through the use of an advanced powered pre-stretch system.

Key Features

• pallet wrapping without load rotation

• ideal for unstable, heavy, or oversized loads

• powered film pre-stretch system (up to approx. 250–300%)

• adjustable wrapping programs tailored to specific products

• automatic film cutting and clamping system (optional)

• high capacity – up to approx. 30 pallets/hour

• suitable for operation in automated packaging lines

Applications

• oversized products and loads

• unstable loads (e.g. lightweight cartons, high stacked pallets)

• logistics, food, construction, and industrial sectors

Construction & Control System

• heavy-duty steel construction

• rotary arm with customized working range

• drives with smooth speed control

• Mitsubishi PLC control system with HMI operator panel

• Festo pneumatic components

• integration capability with roller or chain conveyor systems

Benefits

• safe and reliable wrapping of highly unstable loads

• reduced film consumption and lower packaging costs

• high process repeatability

• capability for full production line automation
